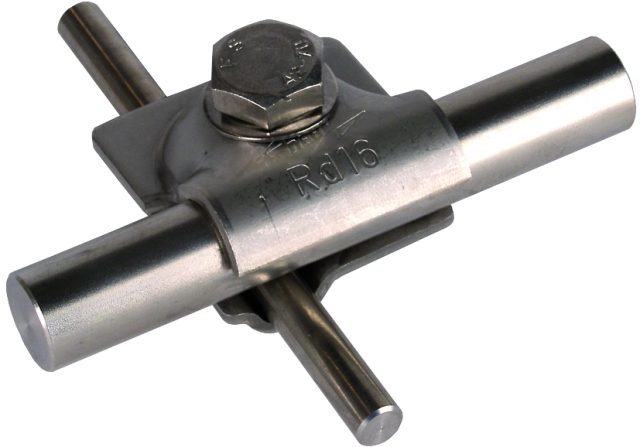

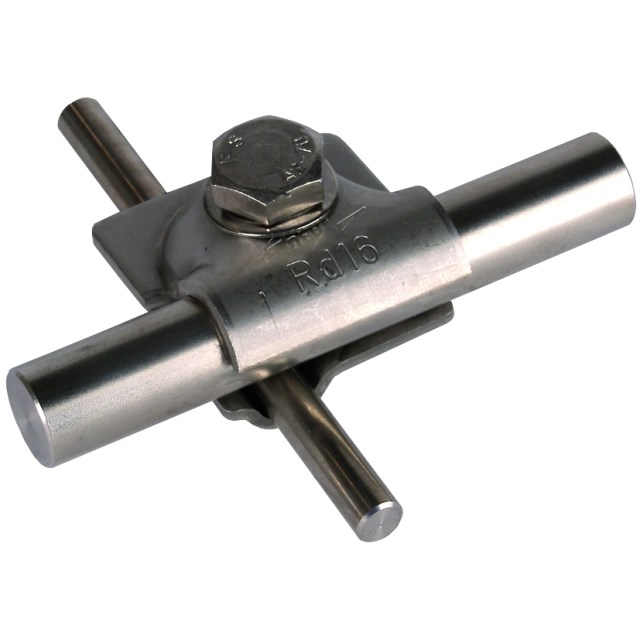

Multipurpose connecting clamp For universal use as a cross clamp, T clamp, and parallel clamp for round conductors at air-termination rods Two-piece with hexagon screw, spring washer and thread in the base part

Specifications

Lightning current load-bearing capacity (10/350µs)	100
Lid Screw Type	Hexagon Screw
Material	Stainless Steel 304 (V2A)
Screw Size	M10 x 40mm
Clamping Range Rd/Rd (mm)	8 - 10 / 16
Conductor Diameter (mm)	8
Reference No.	392059
Suitable For	Air-termination rods and round conductors
Brand	DEHN
Product Type	Clamps and Connectors
Class (Lightning Current Carrying Capability) (kA)	100
Connector Type	T/Cross/Parallel Connector
Surface Protection	Untreated
Dimensions (mm)	48W x 44D
Thickness (mm)	3/2.5
Weight (kg)	0.121
Standards and Approvals	EN 62561-1
