Specifications

Interlockable	Yes
Suitable For	Distribution Board Installation
Version	Fixed
Brand	ABB
Product Type	Non-automatic ACB
Type	Main Switch
EAN	8015644772642
AC Voltage (V)	690
Current Rating (A)	2500
Current Type	AC
Design of Control Element	Push Button
Main Circuit Electrical Connection	Bolt Connection
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Power Loss (W)	267
Rated Current (A)	2500
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	2500
Rated Operational Current AC-23A 380-415V (A)	2500
Rated Operational Voltage (V)	690
Rated Short-Time Withstand Current - Icw (kA)	66
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Short-time Withstand Current - Icw (kA/3s)	50
Rated Uninterrupted Current - Iu (A)	2500
Rated Voltage (V)	690
Terminal Type	Rear Flat Horizontal
Dimensions (mm)	276W x 371H x 270D
Degree of Protection	IP30
Poles	3P
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	2500
Component Type	Fixed

Description

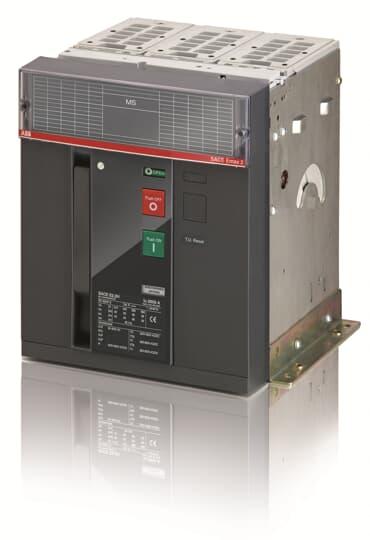

C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E2.2N/MS 2500 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL
