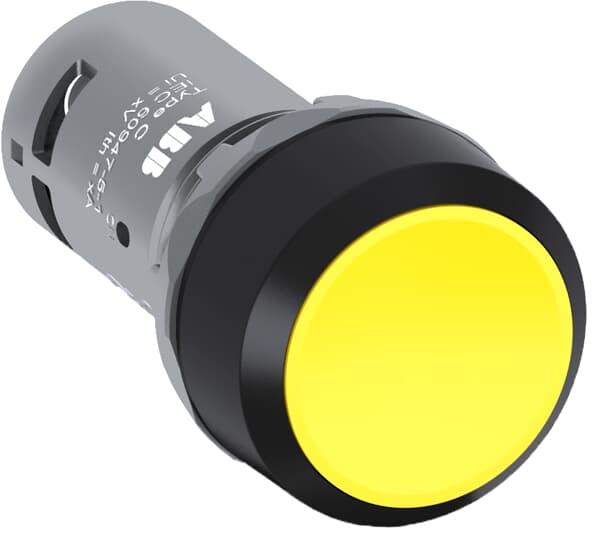

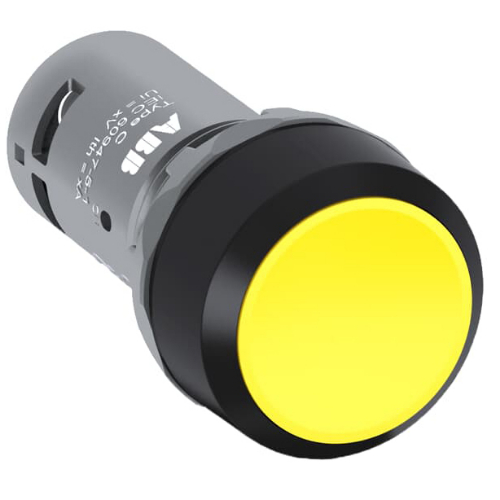

ABB CP1-10Y-11 NON-ILLUMINATED PUSHBUTTON YELLOW FLUSH MOMENTARY 1NO+1NC COMPACT

Product Code: CP1-10Y-11

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Colour Yellow
Operational Temperature Range (°C) -25 to +70
Brand ABB
Product Type Pushbutton
Bezel Type Black Plastic
Contacts 1NO+1NC
Illumination Non-Illuminated
Maximum Operational Voltage AC (V) 300
Maximum Operational Voltage DC (V) 300
Mode of Operation Momentary
Rated Frequency (Hz) 50/60
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 240V AC (A) 1
Rated Operational Current 24V DC (A) 0.3
Terminal Type Screw Terminals
Tightening Torque (Nm) 0.8
Dimensions (mm) 30W X 30H X 55D
Degree of Protection IP66 (Front), IP20 (Terminals)

Description

The Non-Illuminated Pushbutton is a compact and durable device designed for engineers. It features a yellow colour and a flush design, making it easy to operate. The pushbutton has 1 normally open (NO) contact and 1 normally closed (NC) contact, providing versatility in its use. The plastic bezel adds an extra layer of protection to the device.
