Enclosure Material	PBT
Relative Humidity	35 to 85%
Gross Weight (g)	65
Net Weight (g)	55
Resistance to Shock (m/s²)	500
Brand	PANASONIC
Mounting Method	Bracket (not included)
Ambient Temperature (°C)	-25 to +55
Cable Cross Section (mm²)	0.2
Cable Type	4-core cabtyre cable
Storage Temperature (°C)	-30 to +70
Current Consumption (mA)	<20
Emitting Element	Red
Illuminance (lx)	<3000
Insulation Resistance (MO)	2
Operation Indicator	Orange LED - indicates when Output is ON
Output Operation	Switchable - Detection-ON or Detection-OFF
Rated Supply Voltage DC (V)	12 - 24
Response Time (ms)	<1
Sensing Range (mm)	20 to 300
Sensor Type	Adjustable range reflective
Cable Length (m)	2
Withstand Voltage AC (V)	1000 for 1 min
Degree of Protection	IP67

Position Switches & Sensors

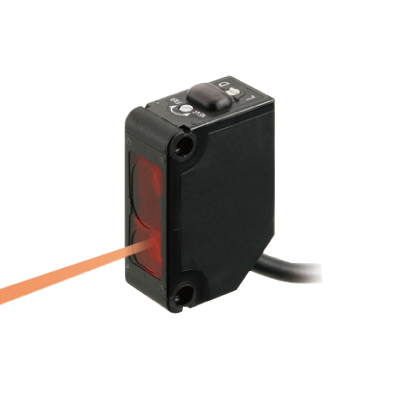

PANASONIC COMPACT PHOTOELECTRIC SENSOR CX-442
