Enclosure Material	PBT
Relative Humidity	35 to 95%
Net Weight (g)	20
Resistance to Shock (m/s²)	10000
Brand	PANASONIC
Ambient Temperature (°C)	-25 to +70
Cable Cross Section (mm²)	0.15
Cable Type	3-core oil, heat and cold resistant cabtyre cable
Storage Temperature (°C)	-40 to +85
Current Consumption (mA)	<15
Insulation Resistance (MO)	50
Operating Distance (mm)	4
Operation Indicator	Orange LED (indicates when output = ON)
Output Operation	Normally Closed
Outputs	PNP
Rated Supply Voltage DC (V)	12 to 24
Sensing Range (mm)	0 to 3.3
Sensor Type	Front Sensing
Cable Length (m)	5
Utilization Category	DC-12 or DC-13
Withstand Voltage AC (V)	1000 for 1 min
Degree of Protection	IP68 (IEC), IP68G
Pollution Degree	3 (Industrial Enviroment)

Position Switches & Sensors

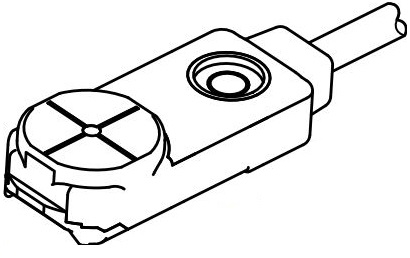

PANASONIC RECTANGULAR INDUCTIVE PROXIMITY SENSOR GX-F12B-P-C5
