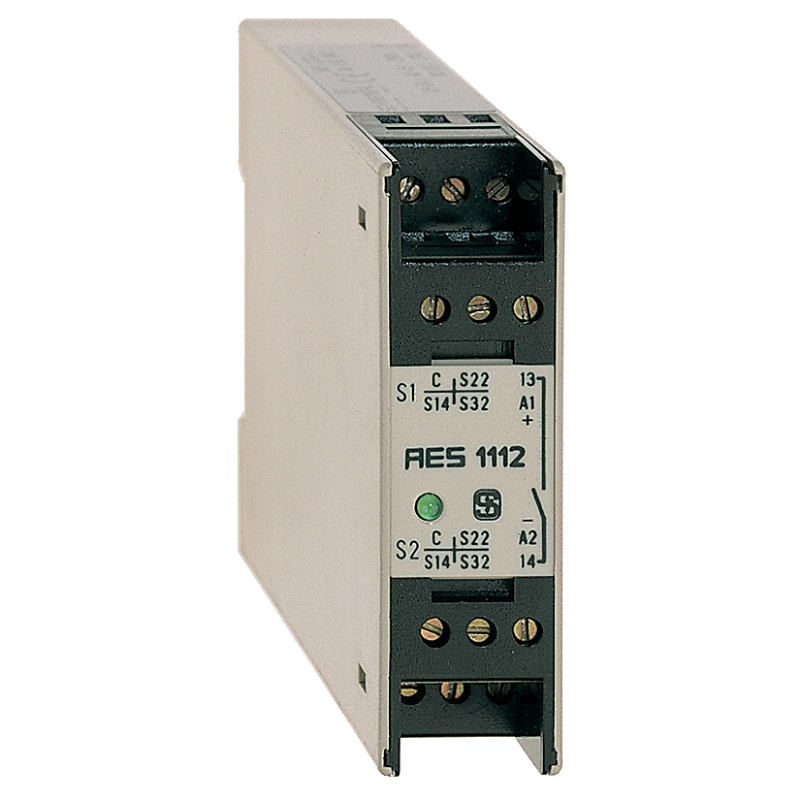

SCHMERSAL AES1112.3 (24VAC) SAFETY-MONITORING MODULE 101128800

Product Code: 101128800

  • Safety-monitoring module AES1112.2 (230VAC) Features STOP 0 functionality Wire breakage detection capability Automatic reset function included Resets after disconnection of supply voltage Integral System Diagnostics for enhanced monitoring Equipped with 1 LED indicator Provides 2 openers and 1 shutter for safety interfacing
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series AES
Nominal Output Current (A) 0.1
Rated Maximum Operational Voltage DC (V) 24
Degree of Protection IP20

Description

Enhance your machine safety with the Schmersal AES Series Safety-monitoring Module. Designed for reliability, this module features STOP 0 functionality, wire breakage detection, and an automatic reset function that activates after supply voltage disconnection. It includes integral system diagnostics to ensure consistent operation. The unit is equipped with one LED indicator, two openers, one shutter, and a single safety contact. With a thermal test current of 4 A, it meets utilisation categories AC-15 (230 VAC at 3 A) and DC-13 (24 VDC at 2 A), making it versatile for various applications. Trust in Schmersal's commitment to machine safety with this robust monitoring solution.
