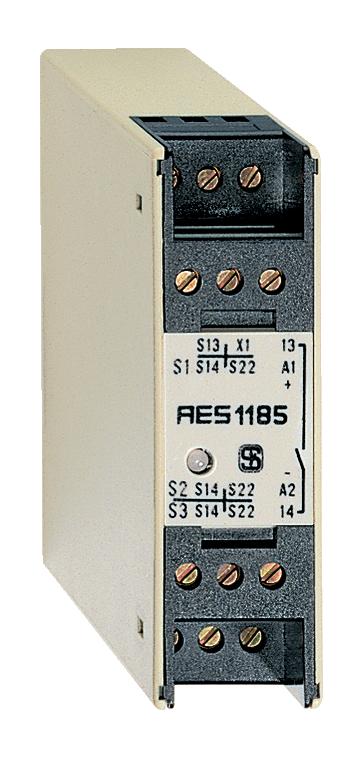

| Housing Material |
Glass-fibre, Reinforced Thermoplastic |
| Maximum Ambient Temperature (°C) |
55 |
| Minimum Ambient Temperature (°C) |
0 |
| No. of LEDs |
1 |
| Brand |
SCHMERSAL |
| Conduction Resistance (O) |
40 |
| Contact Material |
Ag-Ni, Au |
| Contact Resistance (O) |
0.1 |
| Frequency Range (Hz) |
50 - 60 |
| Input Signal |
12 - 30V DC (HIGH Signal), 0 - 2V DC (LOW Signal) |
| Maximum Cable Cross Section (mm²) |
2.5 |
| Maximum Rated Control Voltage AC (V) |
26.4 |
| Maximum Rated Control Voltage DC (V) |
28.8 |
| Maximum Storage Temperature (°C) |
70 |
| Maximum Switching Capacity (A) |
2A (Auxiliary Contacts), 8A (Safe Relay Outputs) |
| Maximum Switching Capacity AC (V) |
250V (Safe Relay Outputs) |
| Maximum Switching Capacity DC (V) |
24V (Auxiliary Contacts) |
| Minimum Mechanical Life |
50000000 Operations |
| Minimum Rated Control Voltage AC (V) |
20.4 |
| Minimum Rated Control Voltage DC (V) |
20.4 |
| Minimum Storage Temperature (°C) |
-25 |
| Minimum Switching Capacity (mA) |
10mA (Safe Relay Outputs) |
| Minimum Switching Capacity DC (V) |
10V (Safe Relay Outputs) |
| No. of Inputs |
3 for NC, 3 for NO |
| No. of Normally-closed Contacts |
3 |
| No. of Normally-open Contacts |
3 |
| No. of Safety Contacts |
1 |
| Power Consumption (W) |
5 |
| Rated Impulse Withstand Voltage (kV) |
4 |
| Rated Operational Current AC-15 (A) |
6A (Safe Relay Outputs) |
| Rated Operational Current DC-12 (A) |
0.1A (Digital Output) |
| Rated Operational Current DC-13 (A) |
6A (Safe Relay Outputs) |
| Rated Operational Voltage (V) |
24V AC -15%/+10% |
| Rated Operational Voltage AC-15 (V) |
230V (Safe Relay Outputs) |
| Rated Operational Voltage DC-12 (V) |
24V (Digital Output) |
| Rated Operational Voltage DC-13 (V) |
24V (Safety Relay Outputs) |
| Resistance to Shock (g/ms) |
30g / 11ms |
| Resistance to Vibrations |
10...55Hz, Amplitude 0.35mm, ± 15 % |
| Termination |
Screw Terminals M20 x 1.5 |
| Thermal Test Current (A) |
4 |
| Depth (mm) |
110 |
| Tightening Torque (Nm) |
0.6 |
| Height (mm) |
75 |
| Width (mm) |
22.5 |
| Voltage Type |
AC |
| Degree of Protection |
IP40, Clips - IP20 |
| Pollution Degree |
2 |
| Standards and Approvals |
EN IEC 60947-5-1, EN IEC 61508, BG-GS-ET-14 |
