Product Code: 101194575

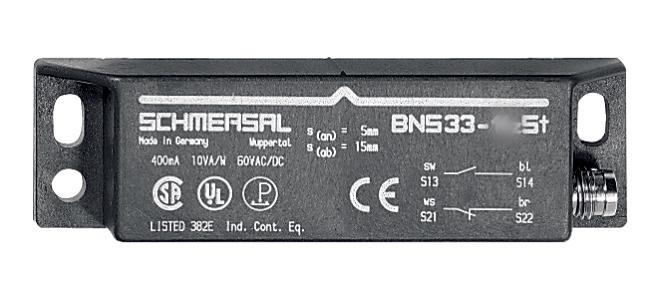

The Schmersal BNS33 series safety sensor is a robust machine safety solution designed with a thermoplastic enclosure and an integrated magnet as the actuating element. This sensor requires an evaluation unit to function and features two openers and one shutter for secure operation. It connects easily via an M12 terminal connector with a 0.3-meter cable length. Optimized for lateral active areas, the sensor operates on a switching voltage of 30 VDC, with a current of 0.25 A and a switching capacity of 3 W, ensuring reliable performance in various industrial settings. Ideal for engineers looking to enhance machine safety without compromising on efficiency or design.

Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross Weight (g)	95
Net Weight (g)	265
Maximum Temperature (°C)	70
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-25
Brand	SCHMERSAL
Series	BNS33
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-06-01
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-01
Maximum Ambient Temperature (°C)	65
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	1.5
Contact Material	Silver
Maximum Fuse Rating	16 A gG D-fuse
Minimum Mechanical Life	10000000 Operations
No. of Safety Contacts	2
Nominal Output Current (A)	0.25
Nominal Power (W)	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Rated Maximum Operational Voltage DC (V)	30
Switching Element	NO contact, NC contact
Switching Principle	Slow action
Terminal Type	Connector plug M12, 4-pole, (A-coding) \| Connector plug M12, 8-pole, (A-coding)
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	200 VDC
Sensor Length (mm)	30
Sensor Height (mm)	29.5
Degree of Protection	IP67
Standards	EN IEC 60947-5-1 / EN IEC 60204-1 / EN IEC 60947-5-3 / EN IEC 62061 / EN ISO 14119 / EN IEC 60947-5-5 / EN IEC 60947-1

Presence Sensing Safety Devices

SCHMERSAL BNS33-12Z-LST-2187 0,3M SAFETY SENSOR 101194575
