Product Code: 101207742

Enhance your machine safety with the Schmersal KA Series Safety Light Curtains, featuring a robust pre-wired cable designed specifically for transmitters. This durable cable comes with four poles and an equal number of wires, ensuring reliable connectivity. The screw connection terminal connector offers secure attachment, while the generous 10-meter length provides ample reach for various setups. Rated for 250 V and a contact load capacity of 4, this cable is an essential component for maintaining operational safety standards in industrial environments.

Enclosure Material	Grey cast iron, galvanised
Gross Weight (g)	48.34
Net Weight (g)	195
Maximum Temperature (°C)	90/80
Minimum Ambient Temperature (°C)	-30
Minimum Temperature (°C)	-30/-40
Brand	SCHMERSAL
Series	KA
EAN	4.03E+12
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-06-12
Maximum Ambient Temperature (°C)	70
Maximum Cable Cross Section (mm²)	1.5
Contact Material	Silver
Maximum Fuse Rating	6 A gG D-fuse
Minimum Mechanical Life	20000000 Operations
No. of Poles	4
Rated Maximum Operational Voltage DC (V)	250
Switching Element	NO contact, NC contact
Terminal Type	Cable
Utilisation Category AC-15	230 VAC
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	149
Sensor Height (mm)	90
Degree of Protection	IP67
Standards	EN IEC 60947-5-1

Presence Sensing Safety Devices

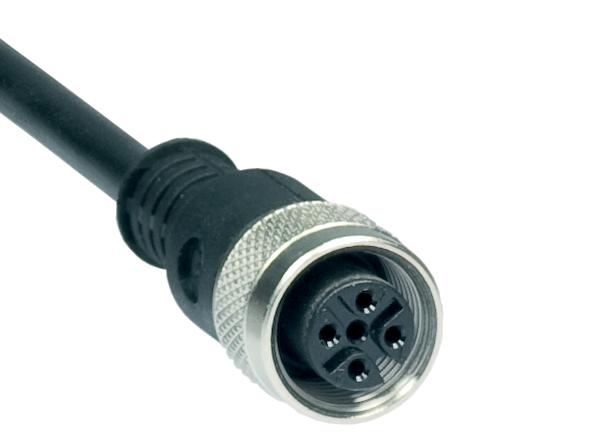

SCHMERSAL KA-0805 CONNECTOR 101207742
