Product Code: 101208365

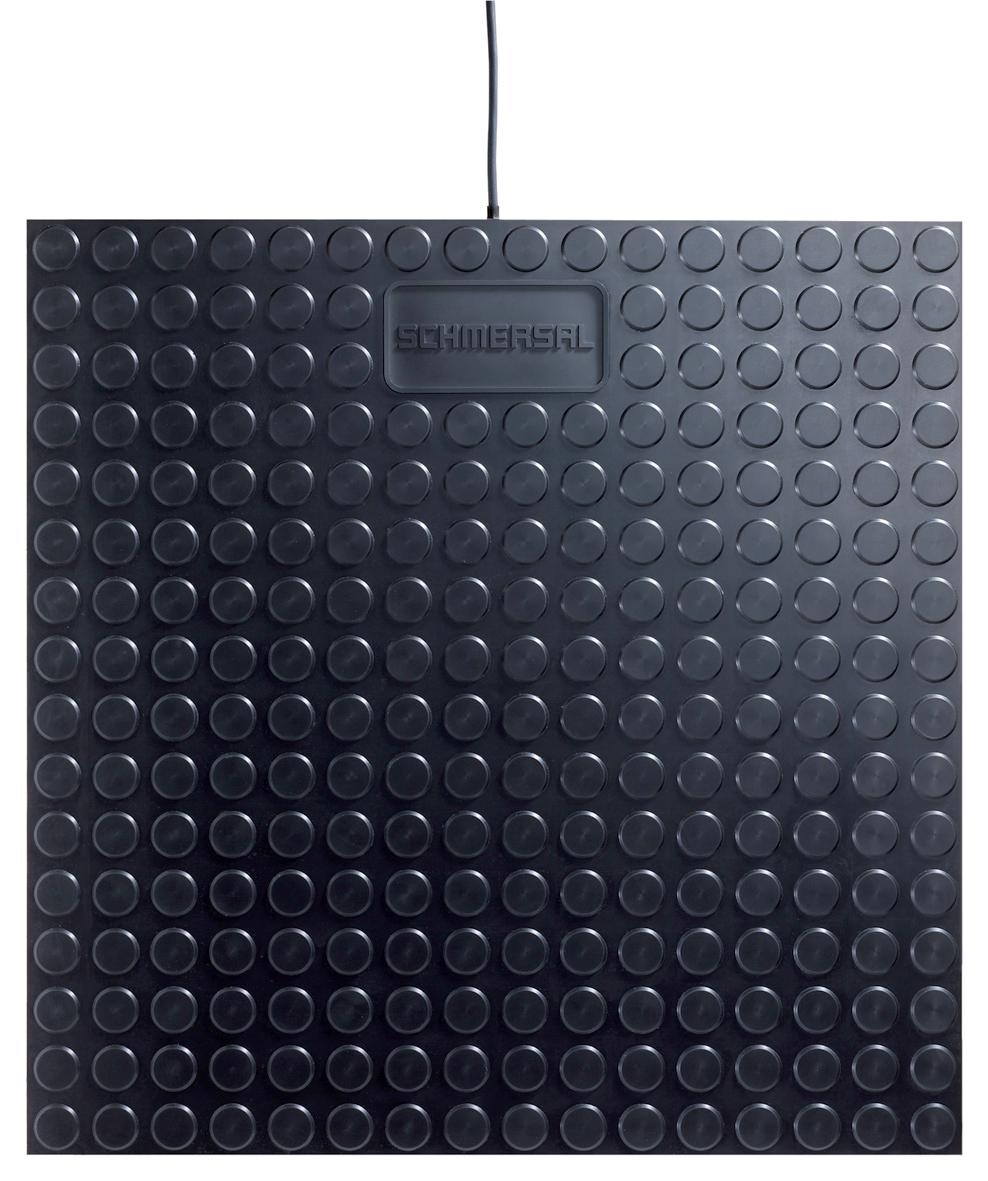

Enhance your machine safety with the Schmersal SMS4 Series Safety-related tactile sensor. This robustly designed sensor ensures secure operations with its slip-free surface and simple mounting process that eliminates the need for an additional baseplate. Measuring 500x250x14 mm, it's easily integrated into your safety system without hassle. Plus, with a 6-meter cable terminal connector and the ability to cascade multiple sensors, you can customize your setup to meet specific requirements. Trust in Schmersal's commitment to reliable machine safety solutions.

Enclosure Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross Weight (g)	20
Net Weight (g)	20
Maximum Temperature (°C)	60
Minimum Ambient Temperature (°C)	-10
Minimum Temperature (°C)	0
Brand	SCHMERSAL
Series	SMS4
EAN	4030660000000
eCl@ss Number, Version 9.0	27-27-26-01
ETIM 7.0	EC000030
ETIM 6.0	EC000030
eCl@ss Number, Version 11.0	27-27-26-01
Maximum Ambient Temperature (°C)	80
Contact Material	Silver
Maximum Fuse Rating	20 A gL/gG D-fuse
Minimum Mechanical Life	20000000 Operations
Terminal Type	Cage clamps
Utilisation Category AC-15	240 VAC
Utilisation Category DC-13	24 VDC
Sensor Length (mm)	16.5
Sensor Height (mm)	90
Degree of Protection	IP65
Standards	EN IEC 60947-5-1 / EN ISO 14119

Presence Sensing Safety Devices

SCHMERSAL SMS4-250-500 SAFETY-RELATED TACTILE SENSOR 101208365
