Product Code: 101211067

Enhance your machine safety with the Schmersal MZM100 series solenoid interlocks. Designed with a robust thermoplastic enclosure and featuring universal coding, these interlocks ensure secure power-to-lock operation. The guard locking is monitored for added security, while the latching mechanism provides reliable retention with a force range of 45-115 N. Equipped with short circuit detection and recognition capabilities, this device supports up to 31 sensors in series-wiring without compromising safety functions. The integral system diagnostics keep you informed of the system's status at all times. With two safety contacts and an M12 8-pole terminal connector, integration into your existing setup is seamless. Operating on a voltage range of 20.4-26.4 VDC and requiring just 50 mA current, the MZM100 is an energy-efficient solution for safeguarding personnel and equipment in any industrial environment. Trust Schmersal's expertise in machine safety to keep your operations running smoothly and safely.

Brand	SCHMERSAL
Maximum Latching Force (N)	115
Maximum Reaction Time (ms)	150
Maximum Temperature (°C)	55
Minimum Ambient Temperature (°C)	-25
Minimum Latching Force (N)	45
Minimum Temperature (°C)	-25
No. of Safety Contacts	2
Rated Operational Current (A)	0.05
Degree of Protection	IP67
Dimensions (mm)	179Hx40Wx40L
Enclosure Material	Thermoplastic
Holding Force (N)	750 (Typically)
Maximum Ambient Temperature (°C)	55
Maximum Operational Voltage DC (V)	26.4
Minimum Operational Voltage DC (V)	20.4
No. of LED	3
No. of Poles	8
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage DC (V)	32
Series	MZM100
Standards and Approvals	EN IEC 60947-5-3, EN IEC 61508
Terminal Type	Connector M12
Weight (kg)	0.698

Safety Interlocks

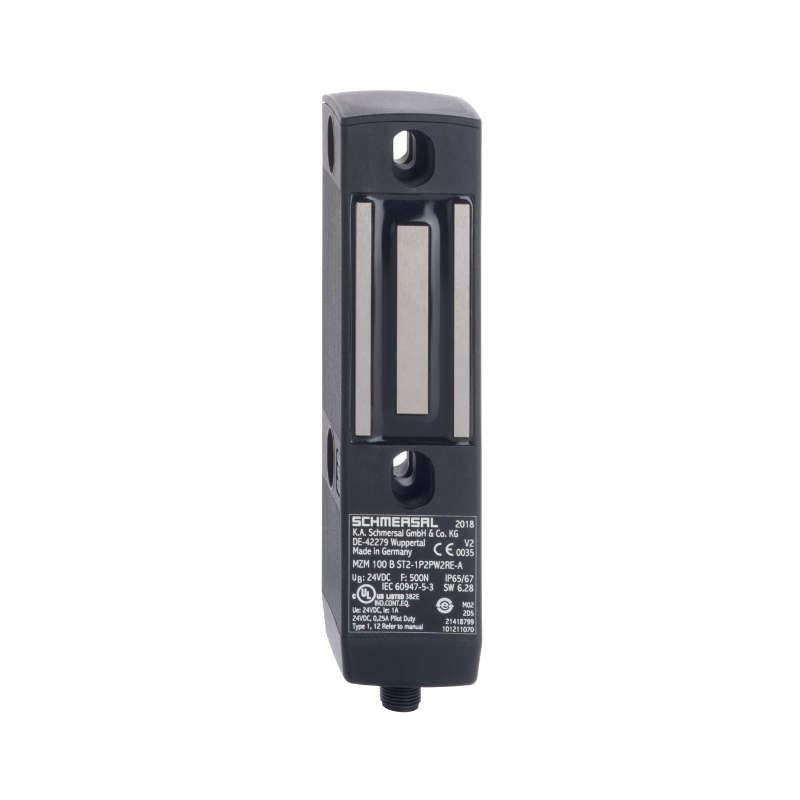

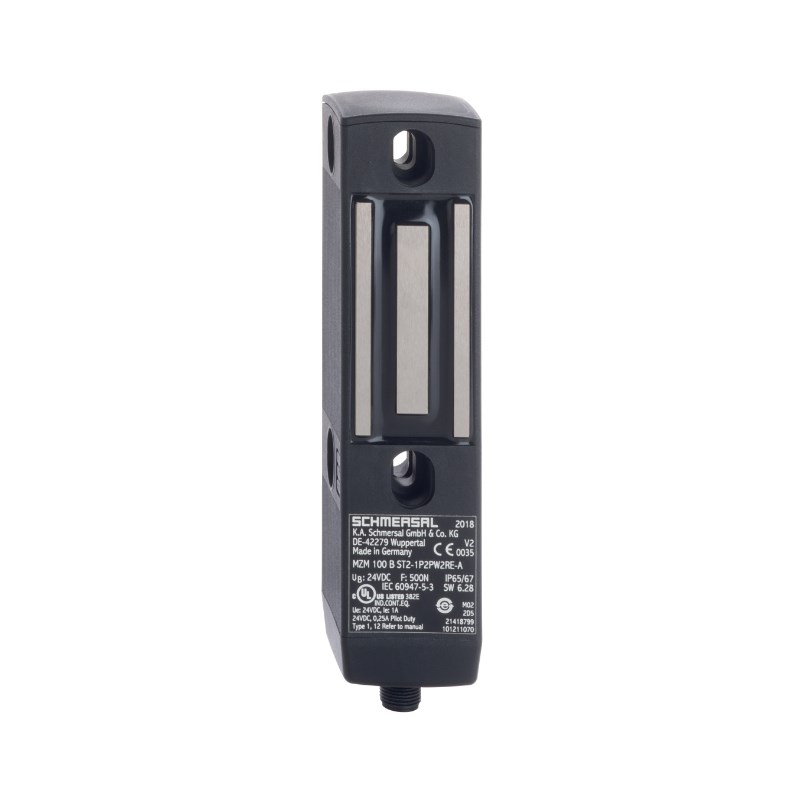

SCHMERSAL MZM100ST2-1P2PWREM-A SOLENOID INTERLOCK 101211067
