Brand	Schmersal
Latching Force (N)	30
Maximum Actuating Speed (m/s)	0.2
Maximum Reaction Time (ms)	100
Minimum Ambient Temperature (°C)	-25
No. of Actuating Directions	2
Degree of Protection	IP67/IP66
Dimensions (mm)	220Hx40Wx50L
Enclosure Material	Thermoplastic
Holding Force (N)	2600 (Max)
Maximum Ambient Temperature (°C)	+60
Maximum Operational Voltage DC (V)	31.6
Minimum Operational Voltage DC (V)	26.5
No. of Poles	4
Rated Impulse Withstand Voltage (kV)	0.8
Rated Insulation Voltage DC (V)	32
Standards and Approvals	EN IEC 62026-2, EN IEC 62061, EN IEC 60947-5-3, EN IEC 61508
Terminal Type	Connector Plug M12
Weight (kg)	0.541

Safety Interlocks

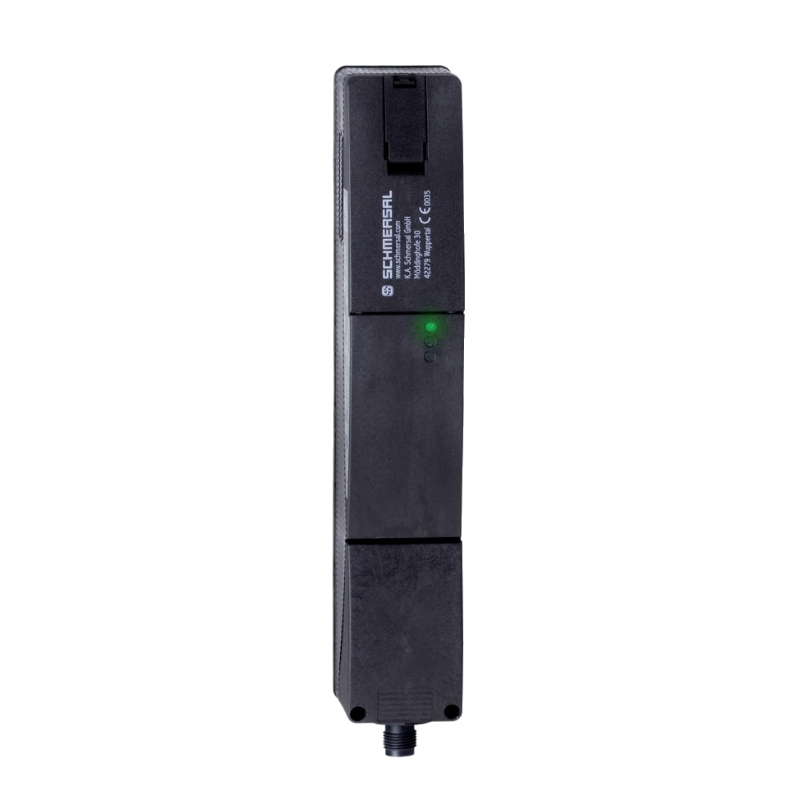

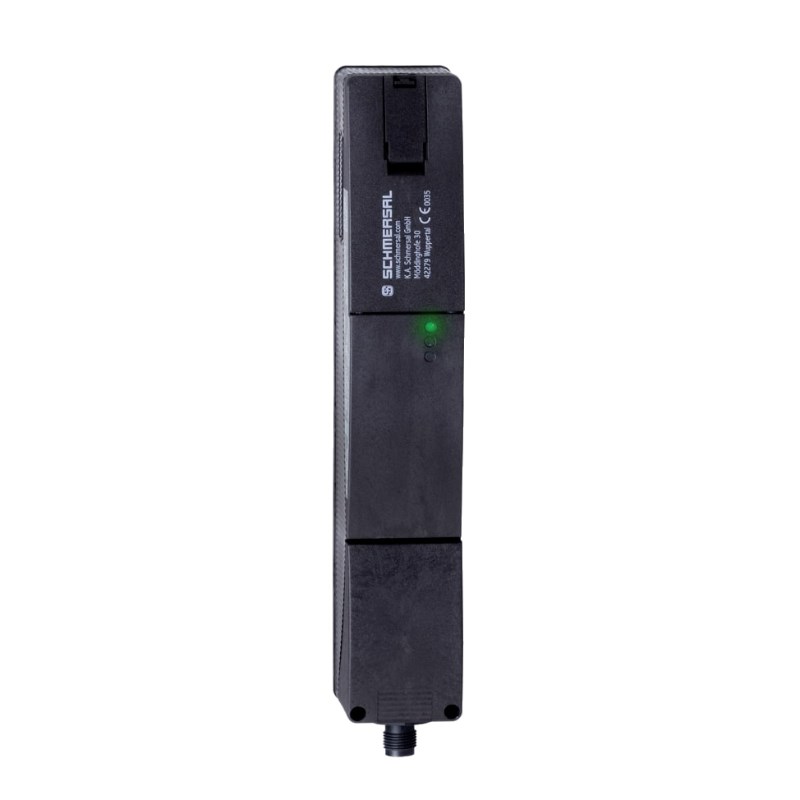

SCHMERSAL SOLENOID INTERLOCK, RFID 2 DIRECTIONS 103025873
