Brand	ABB
EAN	8015644009465
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	125
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	87.5
Power Loss (W)	11.4
Rated Current (A)	125
Rated Instantaneous Short-Circuit Current - Ii (A)	625
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Size of Frame	XT2
Trip Unit	TMA
Degree of Protection	IP20
MCCB Type	XT2 Frame
Poles	4P
Breaking Capacity (kA)	36
Tripping Unit	TMA
Trip Unit - Thermal Magnetic	TMA

Moulded Case Circuit Breakers

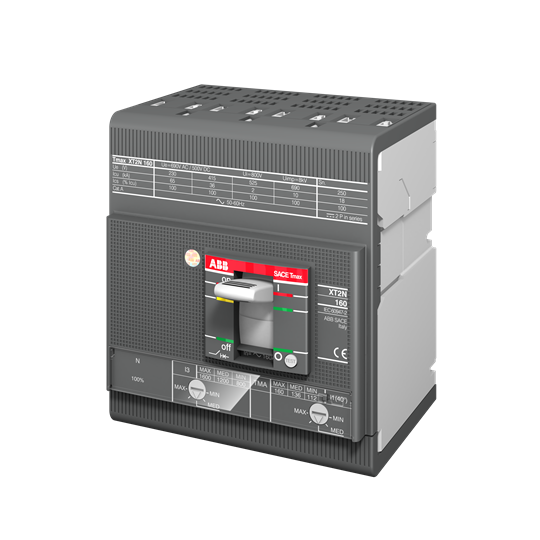

ABB XT2N 160 TMA 125-1250 4P F F INN=50% 1SDA067040R1
