Brand	ABB
EAN	8015644015220
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	125
Design of Control Element	Toggle
Magnetic - I3 (A)	625 - 1250
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	87.5
Power Loss (W)	11.4
Rated Current (A)	125
Rated Instantaneous Short-Circuit Current - Ii (A)	625
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Thermal (0.7 to 1 x In) - I1 (A)	87.5 - 125
Size of Frame	XT2
Trip Unit	TMA
Degree of Protection	IP20
MCCB Type	XT2 Frame
Poles	4P
Breaking Capacity (kA)	70
Tripping Unit	TMA
Trip Unit - Thermal Magnetic	TMA

Moulded Case Circuit Breakers

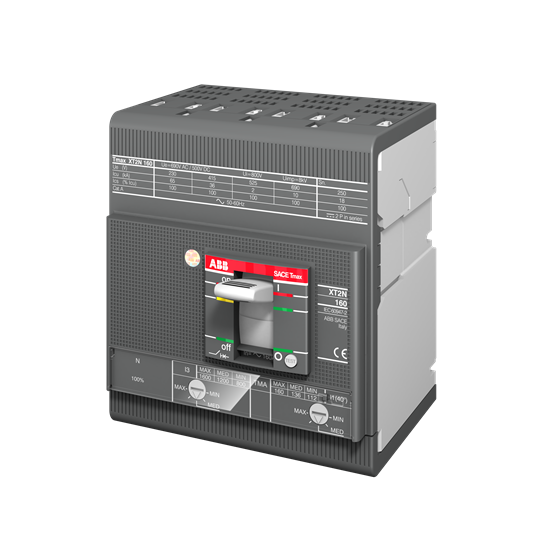

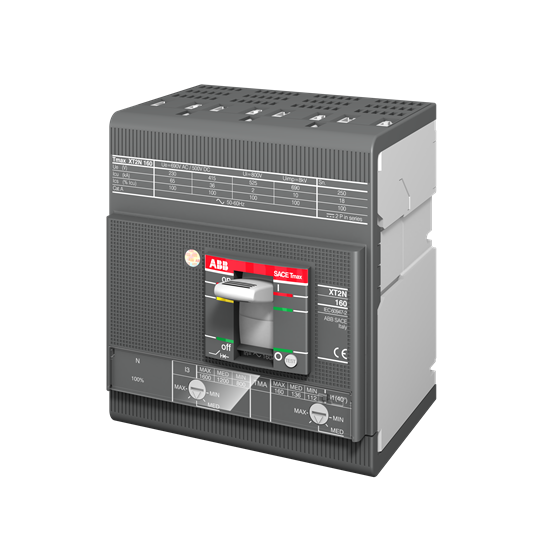

ABB XT2H 160 TMA 125-1250 4P F F INN=100% 1SDA067626R1
