Brand	ABB
EAN	8015644019617
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	63
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	44.1
Power Loss (W)	4.3
Rated Current (A)	63
Rated Instantaneous Short-Circuit Current - Ii (A)	630
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage (V)	690
Size of Frame	XT3
Trip Unit	TMD
Degree of Protection	IP20
MCCB Type	XT3 Frame
Poles	4P
Breaking Capacity (kA)	36
Tripping Unit	TMD
Trip Unit - Thermal Magnetic	TMD

Moulded Case Circuit Breakers

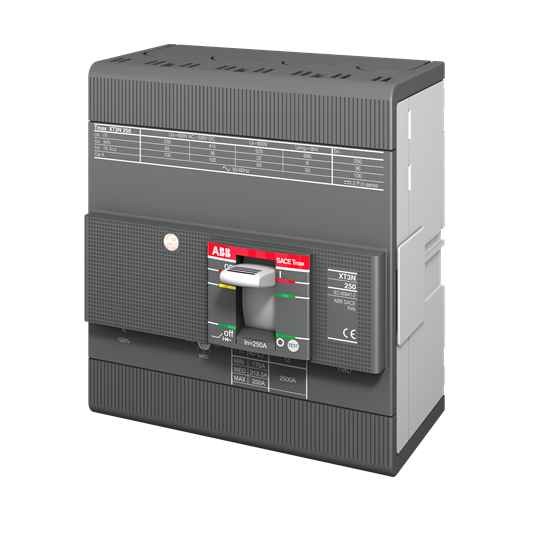

ABB XT3N 250 TMD 63-630 4P F F 1SDA068060R1
