Brand	ABB
EAN	8015644695910
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	160
Design of Control Element	Toggle
Magnetic - I3 (A)	800 - 1600
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	112
Power Loss (W)	8.88
Rated Current (A)	160
Rated Instantaneous Short-Circuit Current - Ii (A)	800
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Thermal (0.7 to 1 x In) - I1 (A)	112 - 160
Size of Frame	XT4
Trip Unit	TMA
Degree of Protection	IP20
MCCB Type	XT4 Frame
Poles	4P
Breaking Capacity (kA)	36
Tripping Unit	TMA
Trip Unit - Thermal Magnetic	TMA

Moulded Case Circuit Breakers

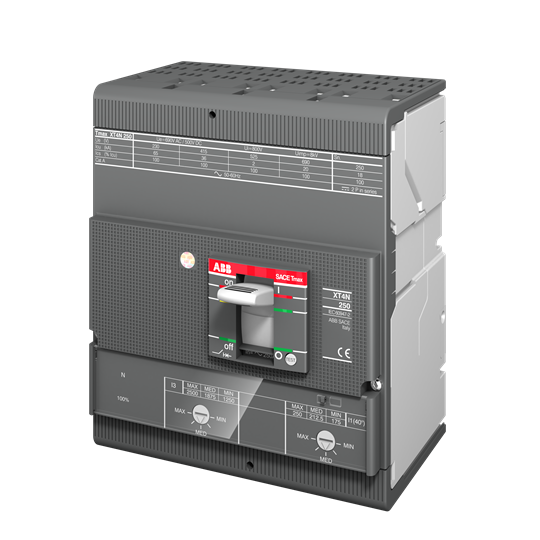

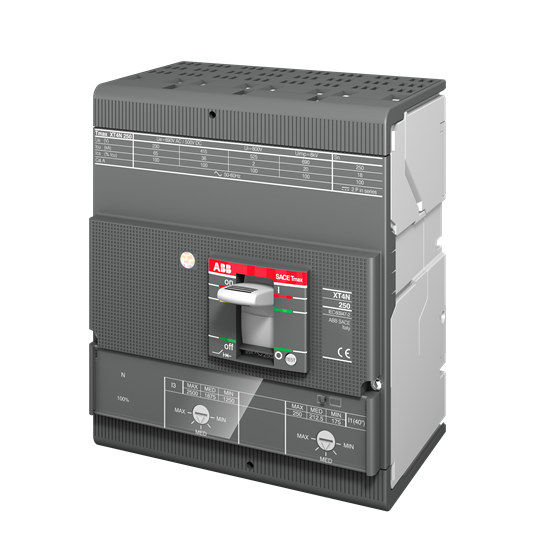

ABB XT4N 160 TMA 160-1600 4P F F INN=100% 1SDA068108R1
