Brand	ABB
EAN	8015644022709
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	250
Design of Control Element	Toggle
Magnetic - I3 (A)	1250 - 2500
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	175
Power Loss (W)	16.44
Rated Current (A)	250
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage (V)	690
Thermal (0.7 to 1 x In) - I1 (A)	175 - 250
Size of Frame	XT4
Trip Unit	TMA
Degree of Protection	IP20
MCCB Type	XT4 Frame
Poles	4P
Breaking Capacity (kA)	70
Tripping Unit	TMA
Trip Unit - Thermal Magnetic	TMA

Moulded Case Circuit Breakers

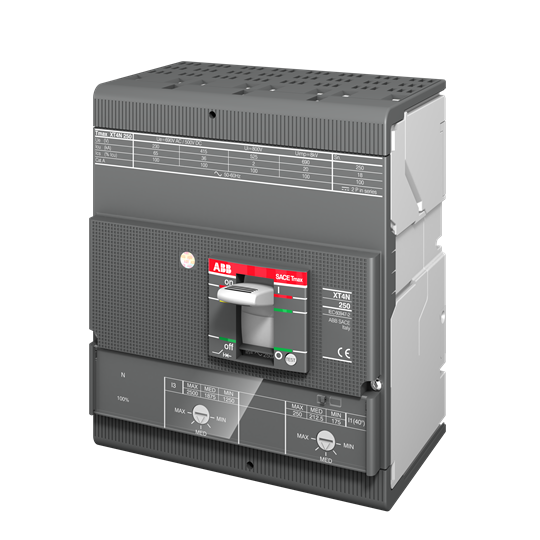

ABB XT4H 250 TMA 250-2500 4P F F INN=100% 1SDA068364R1
