Version	Withdrawable
Brand	ABB
EAN	8015644761295
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Current Rating (A)	1000
Current Type	AC
Design of Control Element	Push Button
Earth Fault Protection	Yes
Indication	Switched-off Indicator
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	400
Power Loss (W)	113
Rated Current (A)	1000
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	1500
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Short-time Withstand Current - Icw (kA/3s)	50
Rated Uninterrupted Current - Iu (A)	1000
Rated Voltage (V)	690
Dimensions (mm)	317W x 425H x 383D
Size of Frame	E2.2
Trip Unit	EKIP Hi-touch LSIG
Degree of Protection	IP30
Poles	3P
Trip Unit - Electronic	EKIP Hi-touch LSIG
Frame	E2.2
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	1000
Component Type	Withdrawable

Air Circuit Breakers

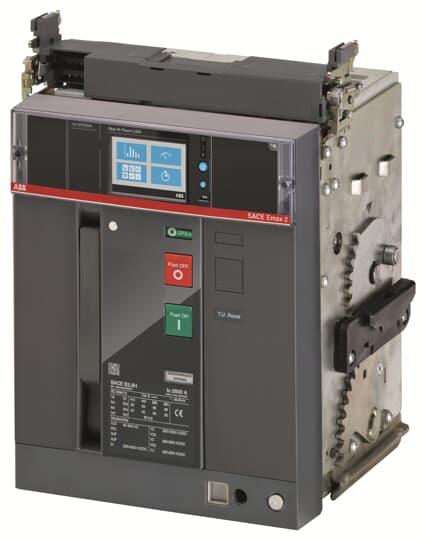

ABB E2.2N 1000 EKIP HI-TOUCH LSIG 3P WMP 1SDA072279R1
