Brand	ABB
Design of Control Element	Toggle
Magnetic (5 to 10 x In) - I3 (A)	2000 - 4000
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT5 Frame
Overload Release Current Setting (A)	160
Rated Instantaneous Short-Circuit Current - Ii (A)	2000
Thermal (0.7 to 1 x In) - I1 (A)	280 - 400
Trip Unit - Thermal Magnetic	TMA
Tripping Unit	TMA
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	400
Degree of Protection	IP20
EAN	8056221004220
No. of Poles	3
Poles	3P
Power Loss (W)	24.1
Rated Current (A)	400
Rated Uninterrupted Current - Iu (A)	400
Rated Voltage (V)	690
Size of Frame	XT5
Trip Unit	TMA

Moulded Case Circuit Breakers

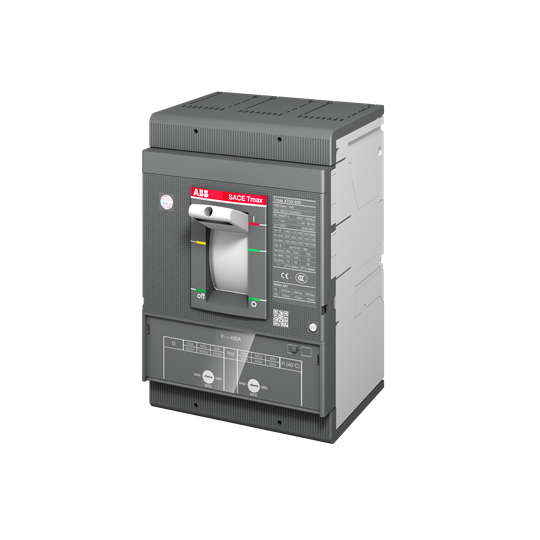

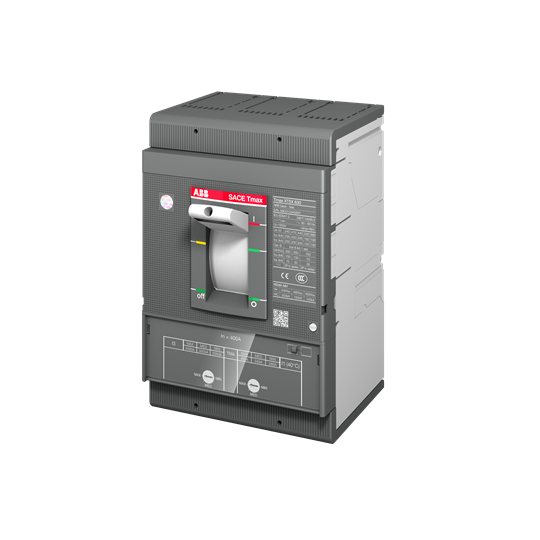

ABB XT5N 400 TMA 400-4000 3P F F 1SDA100345R1
