Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT5 Frame
Overload Release Current Setting (A)	200
Rated Instantaneous Short-Circuit Current - Ii (A)	2500
Trip Unit - Thermal Magnetic	TMA
Tripping Unit	TMA
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	500
Degree of Protection	IP20
EAN	8056221004640
No. of Poles	4
Poles	4P
Power Loss (W)	33.5
Rated Current (A)	500
Rated Uninterrupted Current - Iu (A)	630
Rated Voltage (V)	690
Size of Frame	XT5
Trip Unit	TMA

Moulded Case Circuit Breakers

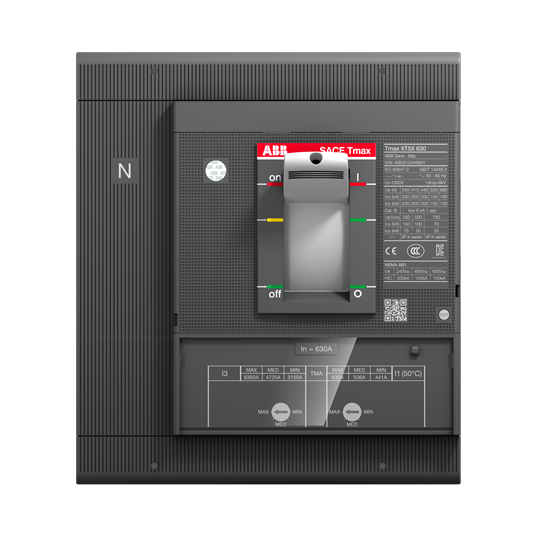

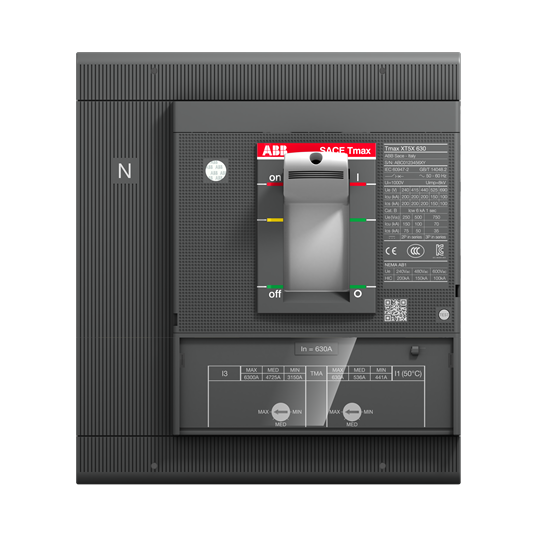

ABB XT5N 630 TMA 500-5000 4P F F INN=100%IN 1SDA100387R1
