Brand	ABB
EAN	8056221004749
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	630
Design of Control Element	Toggle
L (0.4 to 1 x In) - I1 (A)	252 - 630
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	252
Power Loss (W)	45
Rated Current (A)	630
Rated Instantaneous Short-Circuit Current - Ii (A)	630
Rated Uninterrupted Current - Iu (A)	630
Rated Voltage (V)	690
S/I (1 to 10 x In) - I2/I3 (A)	630 - 6300
Size of Frame	XT5
Trip Unit	Ekip DIP LS/I
Degree of Protection	IP20
MCCB Type	XT5 Frame
Poles	4P
Breaking Capacity (kA)	36
Tripping Unit	Ekip DIP LS/I
Trip Unit - Electronic	Ekip DIP LS/I

Moulded Case Circuit Breakers

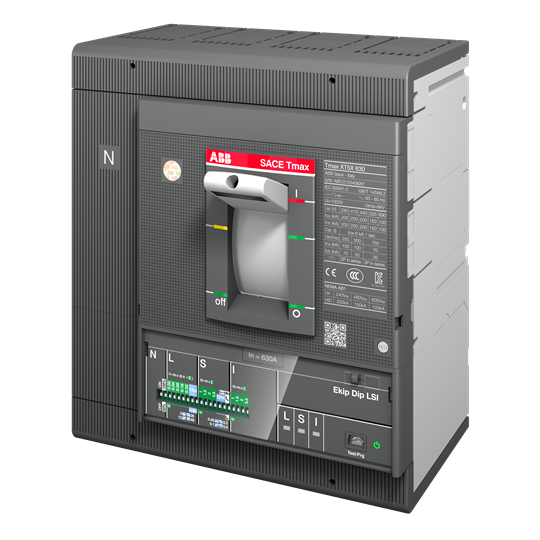

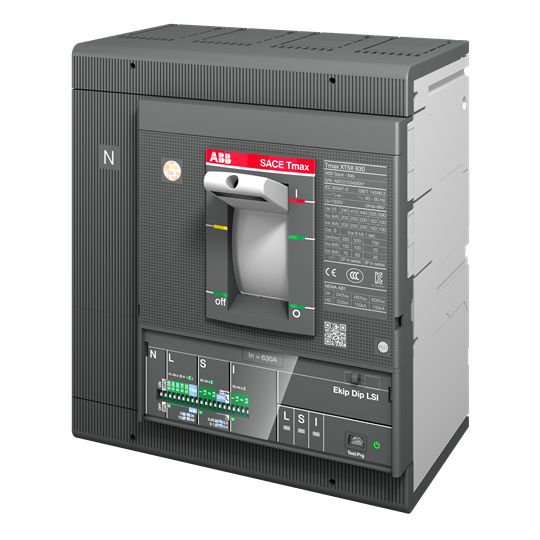

ABB XT5N 630 EKIP DIP LS/I IN=630 4P F F 1SDA100397R1
