Brand	ABB
EAN	8056221008105
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	800
Design of Control Element	Toggle
I (1 to 10 x In) - I3 (A)	800 - 8000
L (0.4 to 1 x In) - I1 (A)	320 - 800
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	320
Power Loss (W)	53.4
Rated Current (A)	800
Rated Instantaneous Short-Circuit Current - Ii (A)	800
Rated Uninterrupted Current - Iu (A)	800
Rated Voltage (V)	690
S (1 to 10 x In) - I2 (A)	800 - 8000
Size of Frame	XT6
Trip Unit	Ekip DIP LSI
Degree of Protection	IP20
MCCB Type	XT6 Frame
Poles	4P
Breaking Capacity (kA)	50
Tripping Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

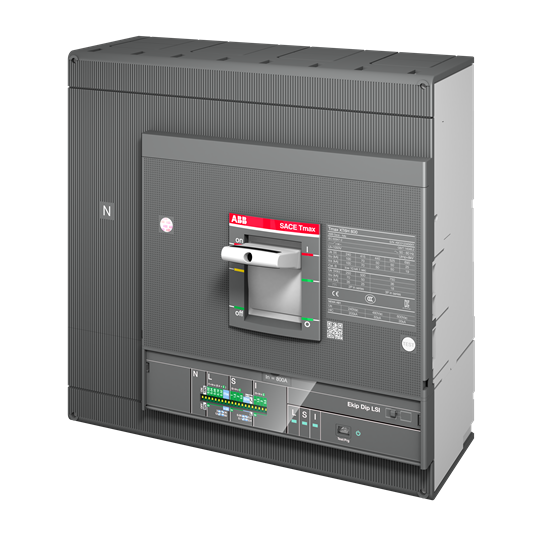

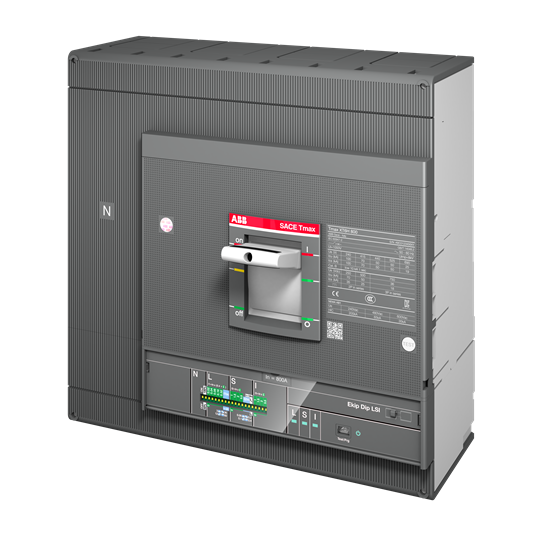

ABB XT6S 800 EKIP DIP LSI IN=800 4P F F 1SDA100756R1
