Brand	ABB
EAN	8056221014809
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	1600
Design of Control Element	Toggle
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
L (0.4 to 1 x In) - I1 (A)	640 - 1600
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	640
Power Loss (W)	94
Rated Current (A)	1600
Rated Instantaneous Short-Circuit Current - Ii (A)	1600
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Size of Frame	XT7
Trip Unit	Ekip DIP LSI
Degree of Protection	IP20
MCCB Type	XT7 Frame
Poles	4P
Breaking Capacity (kA)	70
Tripping Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

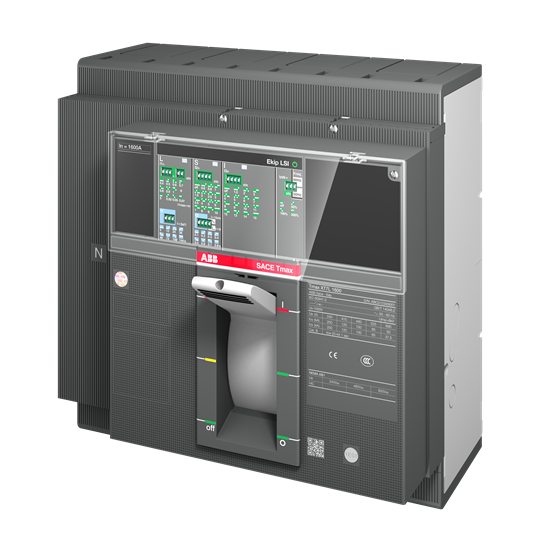

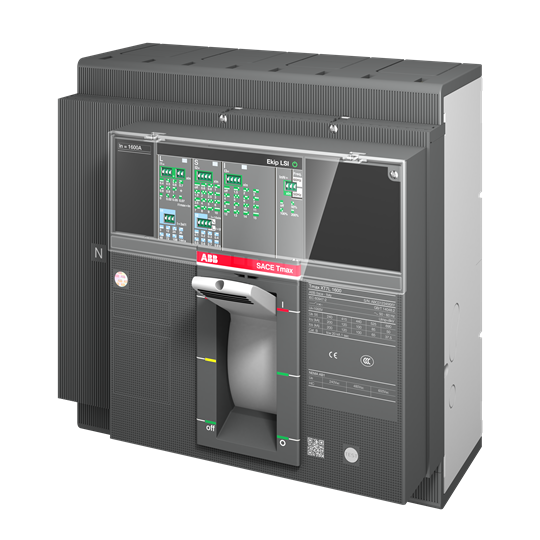

ABB XT7H 1600 EKIP DIP LSI IN=1600A 4P F F 1SDA101177R1
