Brand	ABB
EAN	8056221017039
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1000
Design of Control Element	Toggle
I (1.5 to 15 x In) - I3 (A)	1500 - 15000
L (0.4 to 1 x In) - I1 (A)	400 - 1000
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	400
Power Loss (W)	37
Rated Current (A)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	1000
Rated Uninterrupted Current - Iu (A)	1000
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	600 - 10000
Size of Frame	XT7M
Trip Unit	Ekip DIP LSI
Degree of Protection	IP20
MCCB Type	XT7M Frame
Poles	4P
Breaking Capacity (kA)	50
Tripping Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

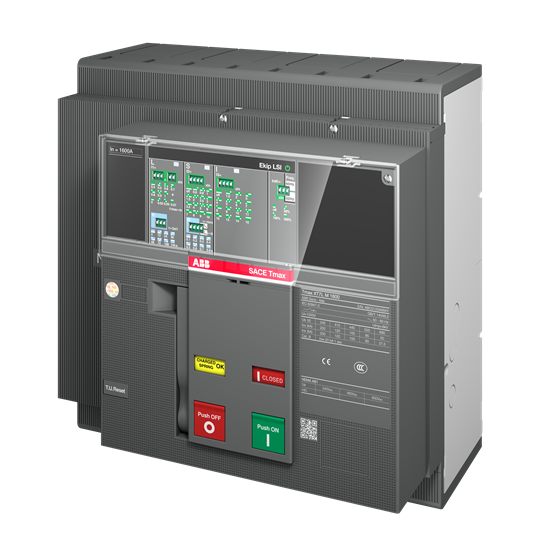

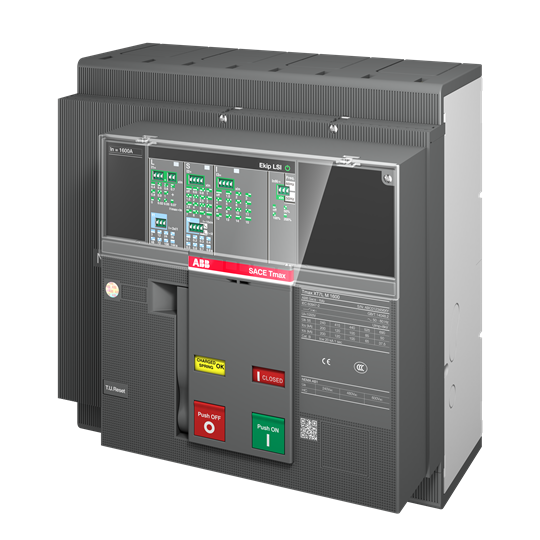

ABB XT7S M 1000 EKIP DIP LSI IN=1000A 4P F F 1SDA101659R1
