Brand	ABB
Product Type	MCCB
EAN	8056221017053
IPD Product Catalogue V17	https://resources.ipd.com.au/catalogue/product-catalogue-v17
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1600
Design of Control Element	Toggle
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
L (0.4 to 1 x In) - I1 (A)	640 - 1600
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	640
Power Loss (W)	94
Rated Current (A)	1600
Rated Instantaneous Short-Circuit Current - Ii (A)	1600
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Size of Frame	XT7M
Trip Unit	Ekip DIP LSI
Degree of Protection	IP20
MCCB Type	XT7M Frame
Poles	4P
Breaking Capacity (kA)	50
Tripping Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

C.BREAKER TMAX XT7S 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LSI R 1600

Brand	ABB
EAN	8056221017053
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1600
Design of Control Element	Toggle
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
L (0.4 to 1 x In) - I1 (A)	640 - 1600
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	640
Power Loss (W)	94
Rated Current (A)	1600
Rated Instantaneous Short-Circuit Current - Ii (A)	1600
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Size of Frame	XT7M
Trip Unit	Ekip DIP LSI
Degree of Protection	IP20
MCCB Type	XT7M Frame
Poles	4P
Breaking Capacity (kA)	50
Tripping Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

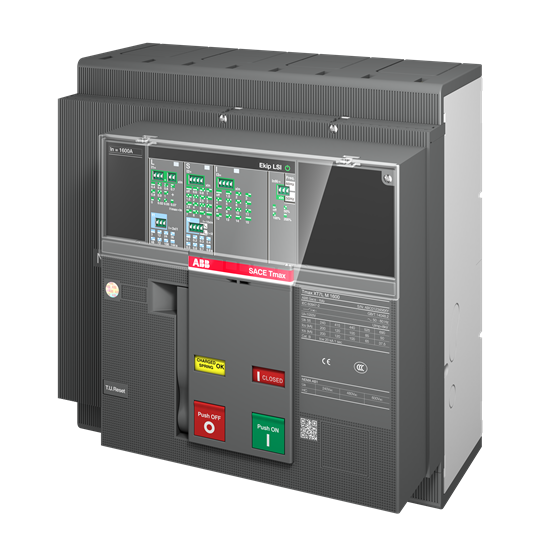

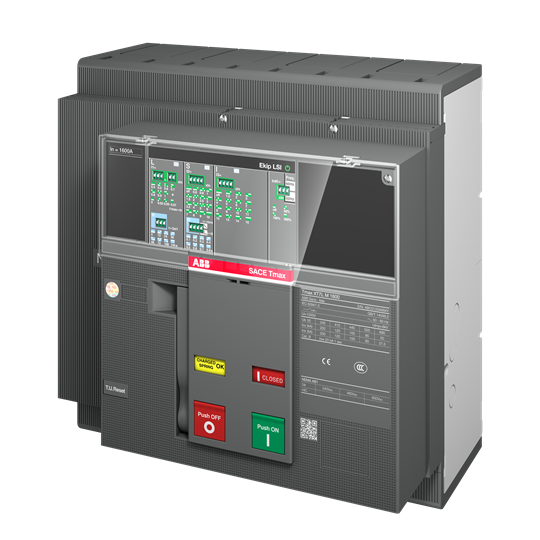

ABB XT7S M 1600 EKIP DIP LSI IN=1600A 4P F F 1SDA101661R1
