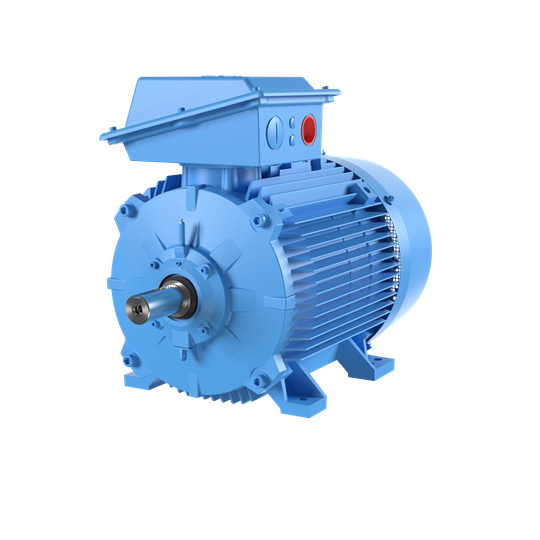

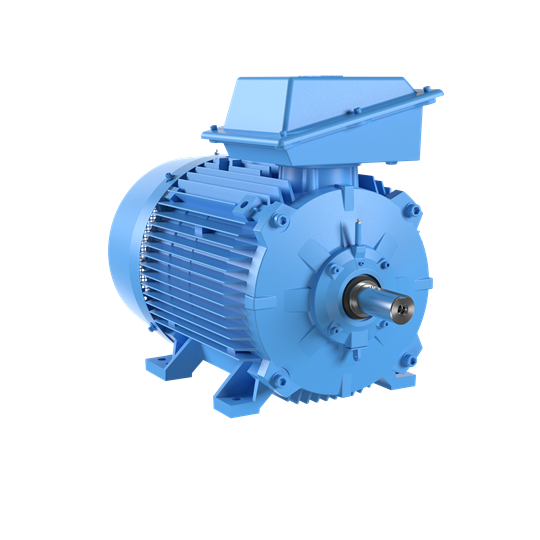

ABB IE3 CAST IRON MOTOR 2P 75kW 400VD FOOT MOUNT B3 IP66 3GBA281260-ADF

Product Code: 3GBA281260-ADF

The IE3 Premium Efficiency Cast Iron Motor is a powerful and efficient motor with a power output of 75 kW. It operates at a voltage of 400 V and has the model number 3GBA281260-ADF. This motor is designed to provide optimal performance and energy efficiency, making it an ideal choice for various industrial applications. With its cast iron construction, this motor offers durability and reliability in demanding environments. Upgrade your machinery with the IE3 Premium Efficiency Cast Iron Motor for improved productivity and energy savings.

Technical Specifications

Colour Blue
Brand ABB
Mounting Method Foot-mounted, term. box top, IM B3, IM 1001
Connection Type DELTA - 415V in D & 690V in Y
Efficiency IE3
Frame Size 280
Motor Designation General Performance - Cast Iron Motors
Rated Power (kW) 75
Dimensions (mm) 1320 X 760 X 1008
Weight (kg) 660
Degree of Protection IP55
Motor Poles 2
