Colour	Blue
Brand	ABB
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Connection Type	DELTA - 415V in D & 690V in Y
Efficiency	IE3
Frame Size	280
Motor Designation	General Performance - Cast Iron Motors
Rated Power (kW)	75
Rated Voltage (V)	690Y/415D
Dimensions (mm)	1320 X 760 X 1008
Weight (kg)	637
Degree of Protection	IP66
Voltage (V)	690Y/415D
Output Power (kW)	75
Motor Poles	4
Phases	3

Motors

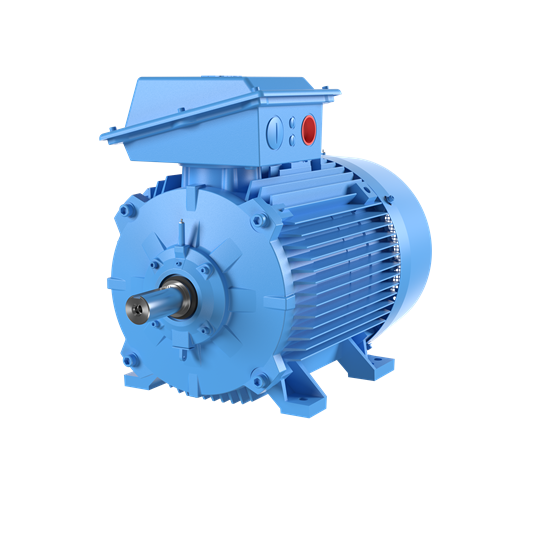

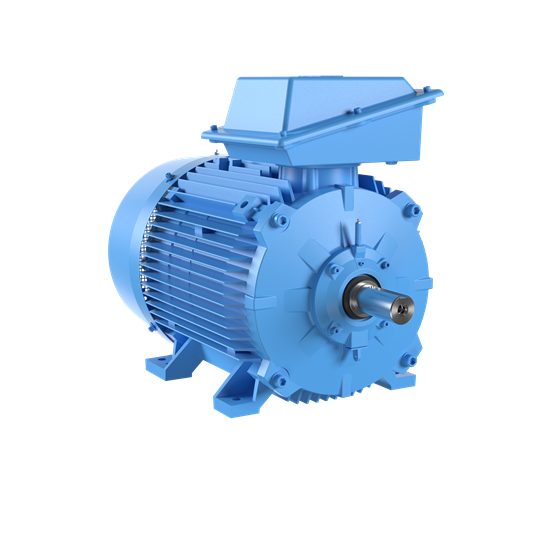

ABB IE3 CAST IRON MOTOR 4P 75kW 400VD FOOT MOUNT B3 IP66 3GBA282260-ADF
