Brand	ABB
Efficiency	IE3
Frame Size	355
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Flange mounted, large flange, IM B5, IM 3001
Rated Power (kW)	315
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Dimensions (mm)	1734 X 1084 X 1284
Weight (kg)	1643

Motors

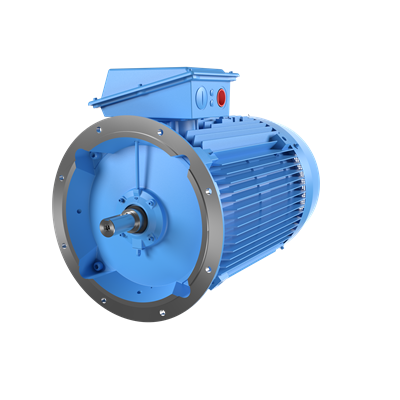

ABB IE3 CAST IRON MOTOR 2P 315kW 400VD BIG FLANGE MOUNT B5 IP66 M2BAX355SMB 3GBA351220-BDM
