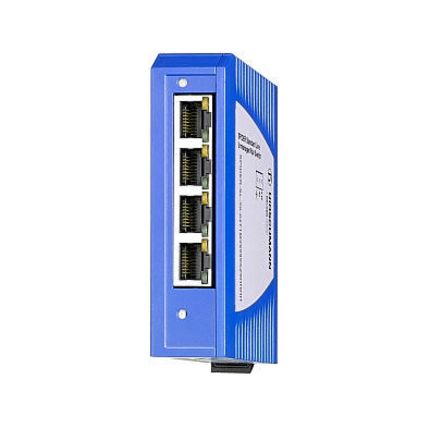

HIRSCHMANN SPIDER III STANDARD LINE, 4X 10/100 BASE TX, RJ45 & 1X 100 BASE FX MULTIMODE SC, 12-24 VDC 942132007

Product Code: 942 132-007

The Hirschmann SPIDER III Standard Line offers a robust networking solution with 4x 10/100BASE TX RJ45 ports and 1x 100BASE FX Multimode SC port, powered by a 12-24 VDC supply. This configuration supports efficient data transmission over both copper and fiber optic mediums, catering to diverse industrial applications.

Technical Specifications

Brand HIRSCHMANN
Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 1
No. of Ethernet Ports 4
Nominal Power (W) 2.4
Rated Maximum Operational Voltage DC (V) 32
Rated Minimum Operational Voltage DC (V) 9.6
Degree of Protection IP30
Maximum Operational Voltage DC (V) 32
Minimum Operational Voltage DC (V) 9.6
Mounting Type DIN Rail / Wall
Operational Temperature Range (°C) 0 to +50
Series SPIDER III
Standards and Approvals CE/ FCC/ EN 61131/ cUL61010
