Product Code: A43-111-100

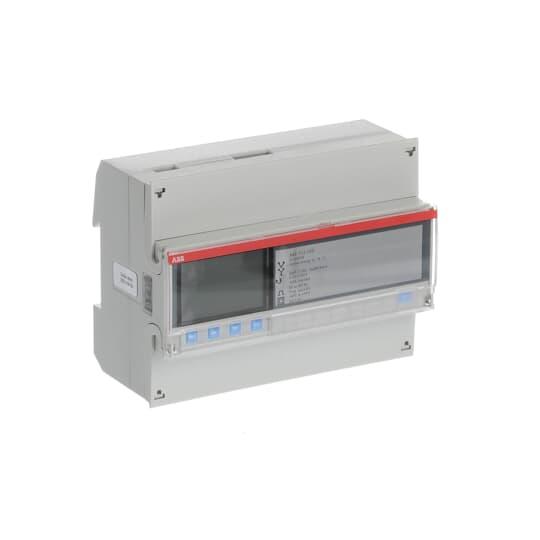

The A43-111 energy meter is a direct connect meter designed for three-phase systems with a maximum current of 80A and voltage of 230VAC. It features a pulse output/IR port for data transmission. This energy meter has an accuracy of active energy class 1%, ensuring precise measurements. The range of measurement is from L-L 100-500V and N-L 57.7-288V, allowing for versatile usage. With a protection degree of IP20, this meter offers reliable protection against dust and solid objects. The backlit pixel-oriented LCD display ensures clear visibility in various lighting conditions. In terms of functionality, the A43-111 energy meter belongs to the sub-group Steel and supports active energy measurement, class 1 accuracy, and pulse output/alarm features. For easy installation, this meter is seven modules wide and can be mounted on a DIN rail.

Enclosure Material	Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Width in Number of Modular Spacings	7
Net Weight (g)	438
Display Screen Type	Digital
Brand	ABB
Mounting Type	DIN-Rail
Operational Temperature Range (°C)	-40 to +70
Accuracy	±1%
Accuracy Class	Active Energy Class B MID
Communication	IR port
Communication Interface	IR port
Current Rating (A)	5
Function	Electricity meter
I/O Option	1 digital output
Maximum Current (A)	80
No. of Digital Outputs	1
No. of Phases	Three-phase
No. of Poles	4P
Number of Counter Positions	7
Power Consumption (W)	0.807
Power Loss (VA)	6
Pulse Output Rate	1-999999
Rated Current (A)	5 Maximum 80
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3x57.7-288
Realtime Clock	10
Sub-Function	Steel
Dimensions (mm)	123 X 26.5 X 65
Degree of Protection	IP20
Standards and Approvals	IEC 62052-11
Meter Type	Direct connected

Power & Multifunction Meters

ABB A43 ENERGY METER 'STEEL', IR PORT, THREE-PHASE, 5A A43-111-100
