Enclosure Material	Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Mounting Type	DIN-Rail
Net Weight (g)	448
Display Screen Type	Digital
Brand	ABB
Product Type	Meter
Accuracy	±1%
Accuracy Class	Active Energy Class B MID
Communication Interface	M-bus
Current Rating (A)	80
Function	Electricity meter
No. of Digital Inputs	1
No. of Digital Outputs	1
No. of Phases	Three-phase
No. of Poles	4P
Number of Counter Positions	7
Power Consumption (W)	0.807
Rated Current (A)	5
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 x 57.7-288
Sub-Function	Steel
Dimensions (mm)	123 X 26.5 X 65
Degree of Protection	IP20
Meter Type	Direct connected

Enclosure Material	Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.
Net Weight (g)	448
Display Screen Type	Digital
Brand	ABB
Mounting Type	DIN-Rail
Accuracy	±1%
Accuracy Class	Active Energy Class B MID
Communication Interface	M-bus
Current Rating (A)	80
Function	Electricity meter
No. of Digital Inputs	1
No. of Digital Outputs	1
No. of Phases	Three-phase
No. of Poles	4P
Number of Counter Positions	7
Power Consumption (W)	0.807
Rated Current (A)	5
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 x 57.7-288
Sub-Function	Steel
Dimensions (mm)	123 X 26.5 X 65
Degree of Protection	IP20
Meter Type	Direct connected

Power & Multifunction Meters

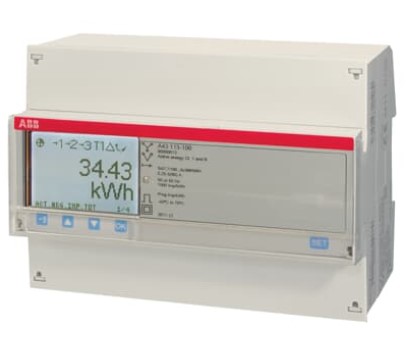

ABB A43 ADVANCED DIN-RAIL METER 'STEEL', M-BUS, THREE-PHASE, 80A, 4P, IP20 A43-113-100
