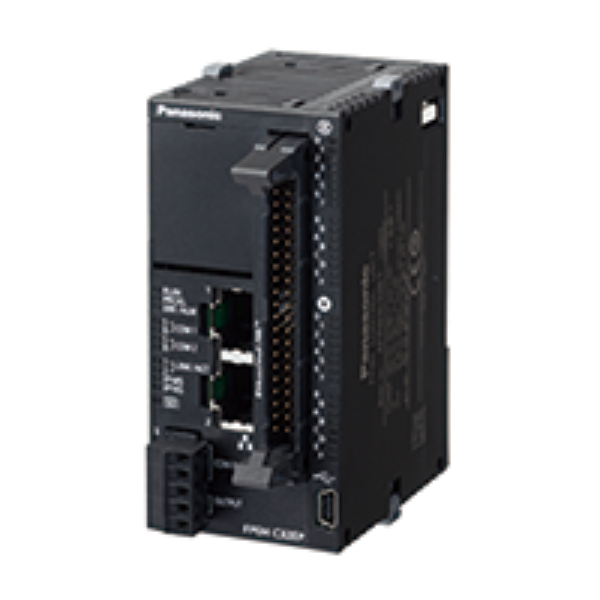

PANASONIC CONTROL UNIT WITH ETHERNET PNP TYPE AFP0HC32EP

The Control unit is a PNP type with Ethernet connectivity, designed to operate at 24 V DC. It has a total of 32 controllable I/O points, with 16 inputs and 16 outputs. When expanded, it can support a maximum of 384 points. The programming method/control method used is relay symbol/cyclic operation. The input operating voltage range is between 21.6 to 26.4 V DC, while the output operating load voltage range is also between 21.6 to 26.4 V DC. For communication, the control unit features an Ethernet interface that supports both 100BASE-TX and 10BASE-T protocols (TCP/IP, UDP). It also supports MODBUS RTU and RS-232C communication via a three-wire system on one channel (not insulated). Additionally, it has a USB2.0 Full speed (USB mini B type) interface and uses MIL connectors for connection. One notable feature of this control unit is its built-in SD memory card function, allowing for convenient storage and retrieval of data. Overall, this control unit offers reliable performance and versatile connectivity options for various industrial applications.
