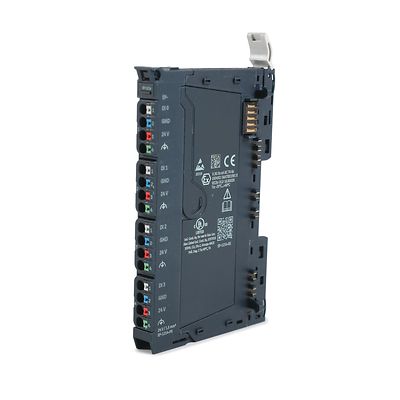

Product Code: EP-5311

Enhance your automation systems with Emerson's RSTi-EP SSI Encoder, a versatile component designed for PLCs within the RSTi-EP series. This encoder supports both BCD and Gray-Code formats and boasts an output rating of 0.5A at 24VDC, ensuring reliable performance in various applications including machine control, light process control, and general automation tasks. With compatibility across multiple communication protocols such as PROFINET RT, PROFIBUS, Modbus TCP, and EtherCAT, this DIN rail-mounted device streamlines integration into existing setups, making it an ideal choice for engineers looking to optimize their control systems.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	-20
Brand	Emerson
Series	RSTi-EP
Mounting Type	DIN Rail
Communication Protocols	MODBUS, PROFINET, PROFIBUS, EtherCAT, EtherNet/IP
Current Consumption	8mA 20.4-28.8V DC; 35mA + Load 24V DC
Maximum Nominal Output Voltage DC (V)	28.8
Minimum Nominal Output Voltage DC (V)	20.4
No. of IO	1
Nominal Output Current (A)	0.5
Rated Maximum Operational Voltage DC (V)	28.8
Rated Minimum Operational Voltage DC (V)	20.4
Redundancy	PNSR
Degree of Protection	IP20
Standards and Approvals	ATEX/IECeX

Programmable Logic Controllers & I/O

EMERSON RSTI-EP SSI ENCODER, BCD OR GRAY-CODE FORMAT, 5/24 VDC EP-5311

Product Code: EP-5311

Technical Specifications
