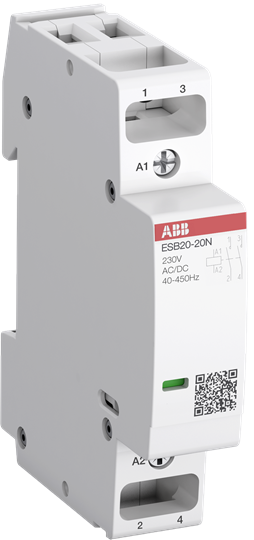

ABB ESB2020N14 INSTALLATION CONTACTOR 2NO, 20A (AC-1), CONTROL 12VAC/DC

Product Code: ESB2020N14

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail
Brand ABB
Product Type ESB Installation Contactor
Contacts 2NO
No. of Poles 2P
Rated Control Circuit Voltage AC/DC (V) 12
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 400
Rated Operational Current AC-1 (A) 20
Terminal Type Screw Terminals
Dimensions (mm) 18W X 85H X 65D
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Description

These installation contactors have 2 normally open contacts and a current rating of 20A (AC1). They operate at a control voltage of 12V AC/DC. With a width of 1 modular spacing, these contactors are suitable for both household and industrial applications. They provide hum-free operation, low power consumption, and integrated overvoltage protection. The contactors can be easily mounted using DIN mounting.
