Product Code: IC695ALG708

The Emerson RX3i Analog Output module is a versatile component for automation systems, designed to fit seamlessly into chassis-based setups. This module offers flexibility with 2 to 8 channels that support both voltage and current output types, catering to a wide range of industrial applications including complex machinery, process control, motion control, and general automation tasks. It boasts an array of network interfaces such as PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX, ensuring robust connectivity options for various system requirements. Engineered for reliability and performance within the RX3i series of PLCs, this module can be mounted on a panel or DIN rail according to your installation needs.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
Brand	Emerson
Series	RX3i
Mounting Type	On Panel / DIN Rail
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Maximum Nominal Output Voltage DC (V)	10
Minimum Nominal Output Voltage DC (V)	-10
No. of Analogue Outputs	8
No. of IO	8
Nominal Output Current (A)	0.02
Degree of Protection	IP20
Standards and Approvals	ATEX/IECeX
Approvals	Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR

Programmable Logic Controllers & I/O

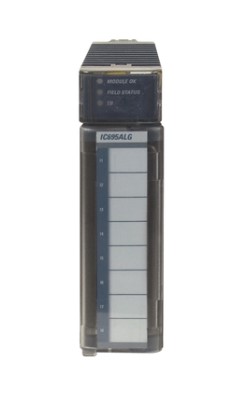

EMERSON RX3I ANALOG OUTPUT MODULE, CURRENT/VOLTAGE, 8 CHANNEL IC695ALG708

Product Code: IC695ALG708

Technical Specifications
