Product Code: IC695ALG808

The Emerson RX3i Analog Output module is a versatile component for your automation systems, designed to fit seamlessly into chassis-based setups. This module offers flexibility with 2 to 8 channels that support both voltage and current output types. Engineered for integration with a variety of network interfaces including PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX, it ensures compatibility with complex machine designs, process control systems, motion control setups, and general automation tasks. Suitable for mounting on panel or DIN rail installations, this PLC from the RX3i series stands as a robust solution for sophisticated automation requirements.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
Brand	Emerson
Series	RX3i
Mounting Type	On Panel / DIN Rail
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Current Consumption	250mA @ 3.3V, 17mA @ 5 VDC; 660mA 24 VDC External Power
Maximum Nominal Output Voltage DC (V)	10
Minimum Nominal Output Voltage DC (V)	-10
No. of Analogue Outputs	8
No. of IO	8
Nominal Output Current (A)	0.02
Degree of Protection	IP20
Standards and Approvals	ATEX/IECeX
Approvals	Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR

Programmable Logic Controllers & I/O

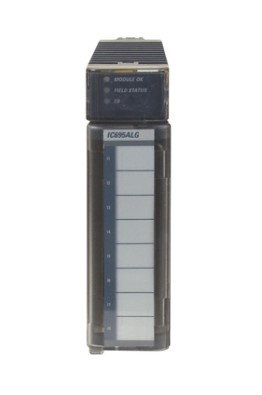

EMERSON RX3I ANALOG OUTPUT MODULE, CURRENT/VOLTAGE, ISOLATED, 8 CHANNEL IC695ALG808

Product Code: IC695ALG808

Technical Specifications
