Net Weight (g)	355
Display Screen Type	Digital
Brand	ABB
Mounting Type	Front Panel
Accuracy Class	Active energy: Class 0.5 Reactive energy: Class 2 Active power: Class 0.5 Reactive power: Class 1 Apparent power: Class 0.5 Harmonics, THD (current, voltage): Class 1
Communication	Modbus TCP/IP, Bluetooth
Current Rating (A)	1
No. of Digital Inputs	4 programmable
No. of Digital Outputs	4 programmable
No. of Phases	Three-phase
No. of Poles	3P or 4P
Number of Counter Positions	9
Power Consumption (VA)	Maximum 10
Rated Current (A)	0.01 … 1(6)
Rated Frequency (Hz)	50 / 60
Rated Voltage (V)	3 x 230 (400) 3 x 400 (690)
Dimensions (mm)	96 X 96 X 78
Degree of Protection	IP54
Meter Type	Transformer connected

Power & Multifunction Meters

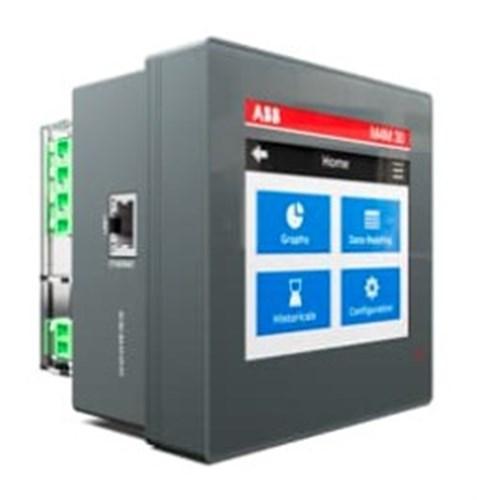

ABB M4M 30-M ETHERNET NETWORK ANALYZER, 4 PROGRAMMABLE I/O, AUX VOLTAGE 48-240 V AC/DC M4M 30-M ETHERNET
