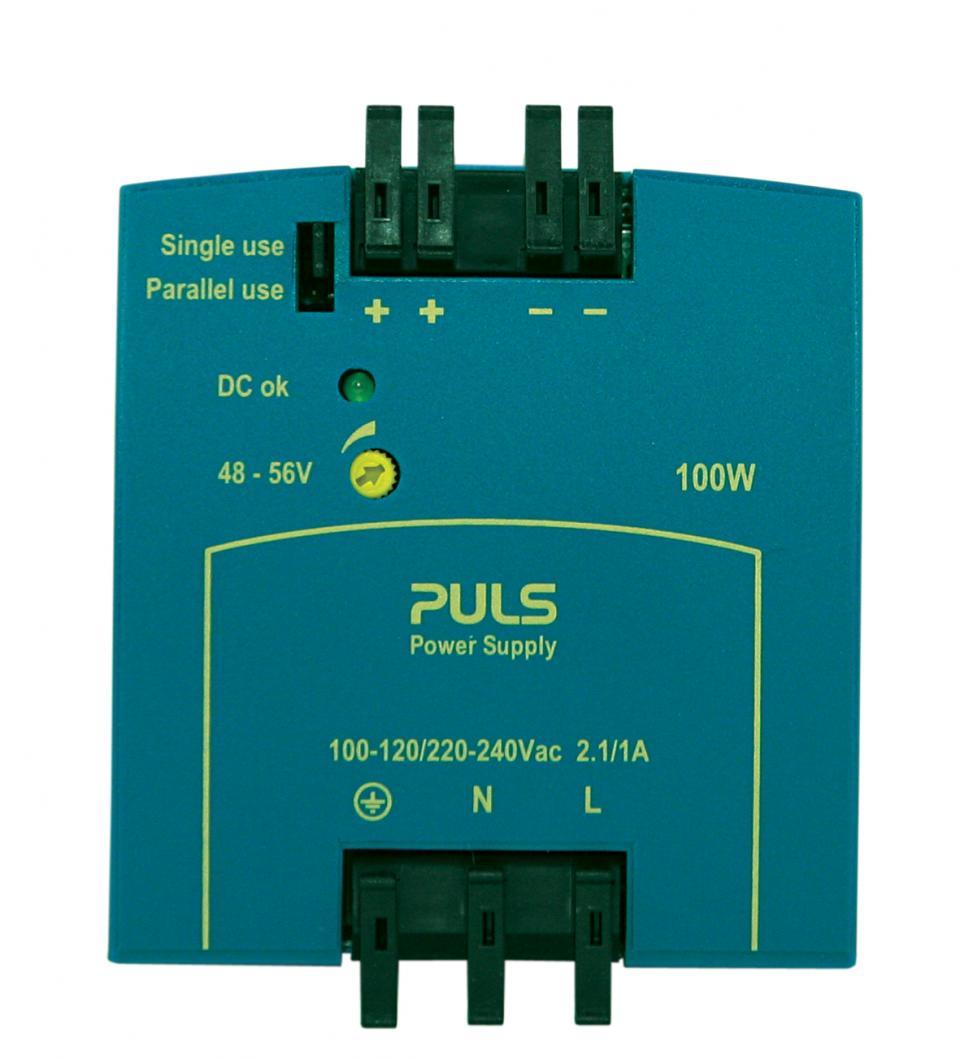

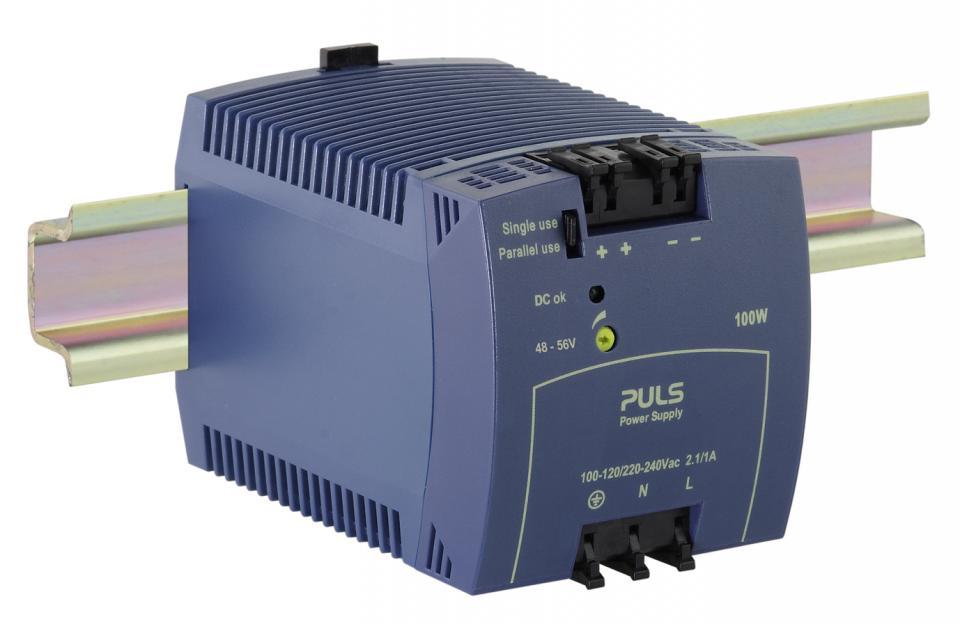

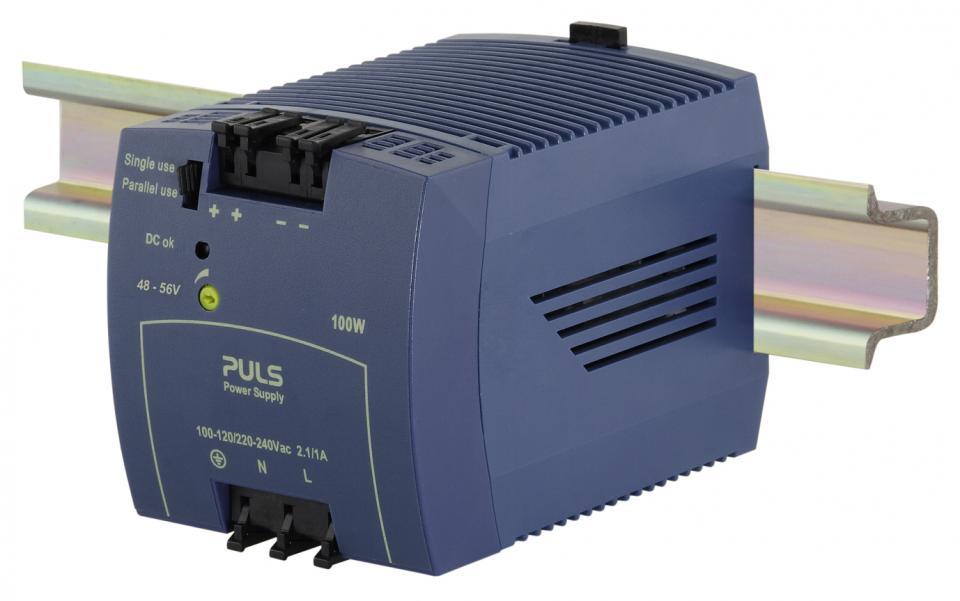

PULS DIN RAIL POWER SUPPLY 1 PHASE 48VDC 2.1A 100W ML100.105

Product Code: ML100.105

This product features an auto-select input for both 115V and 230V. It has an impressive efficiency of up to 91.5%. The device can be adjusted to parallel mode, allowing for load sharing. It provides full output power in temperatures ranging from -10 to +60 degrees Celsius. Additionally, it is equipped with quick-connect spring-clamp terminals for easy installation.

Technical Specifications

Conformal Coating No
Derating Temperature (°C) > +60
Brand PULS
Series ML series
Range MiniLine
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS01
Warranty Period (Months) 36
Mounting Type DIN Rail
AC Input Type Auto-select
Connection Type Spring clamps
Derating 2.5 W/°C
Efficiency 91.00%
External Input Fuse Recommendation B-10 A / C-6 A
Family MiniLine
Input Inrush Current (A) 22 / 37
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-120, 200-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 290
Output Current Range (A) 2.1 - 1.8
Output Power (W) 100
Output Voltage (V) 48-56
Power Factor 0.55
Power Loss (W) 10
Rated Current (A) 2.1
Special Application Marine
Dimensions (mm) 73W x 75H x 103D
Use In Crosslinking Yes
Weight (g) 360
Degree of Protection IP20
Standards and Approvals EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
