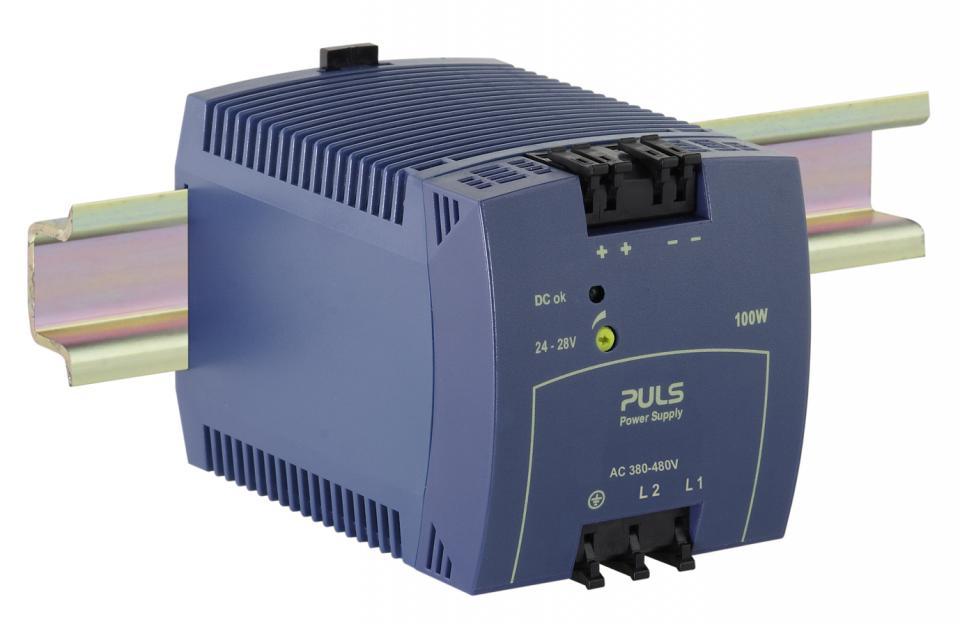

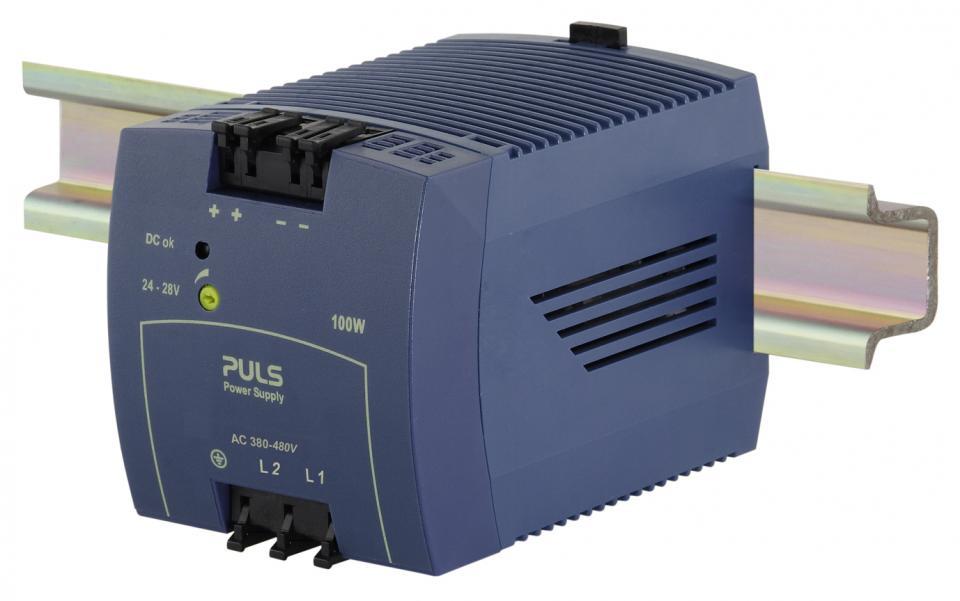

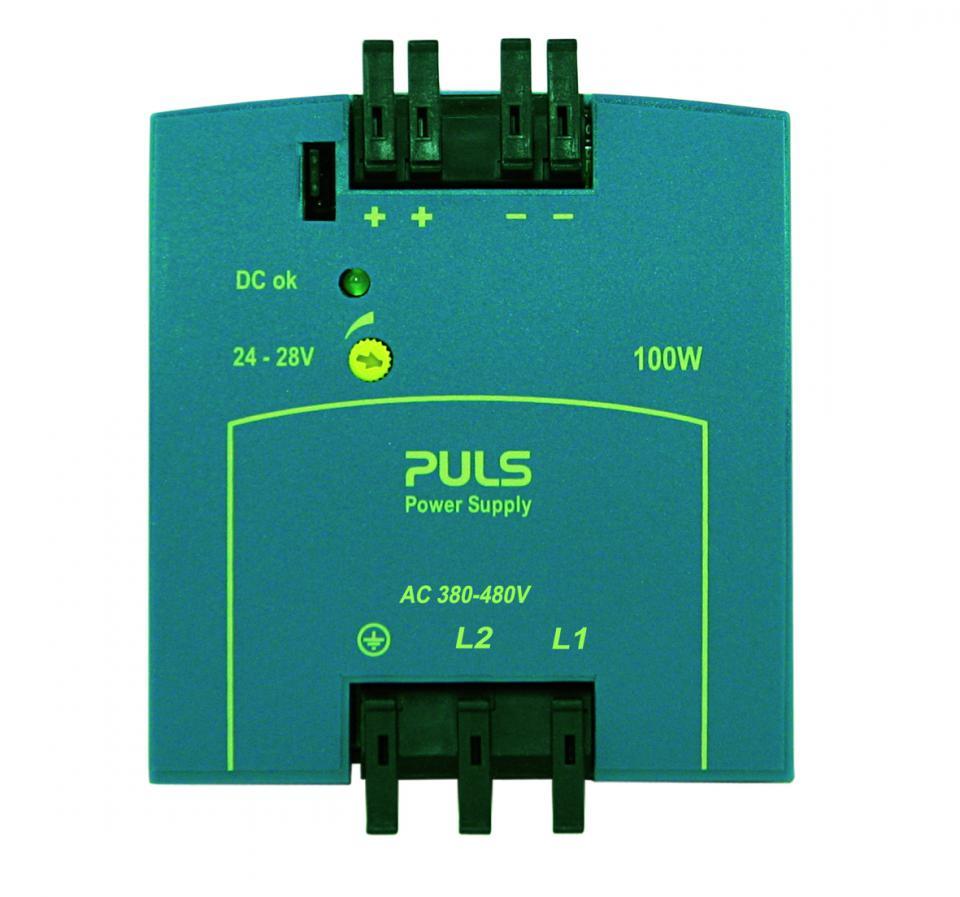

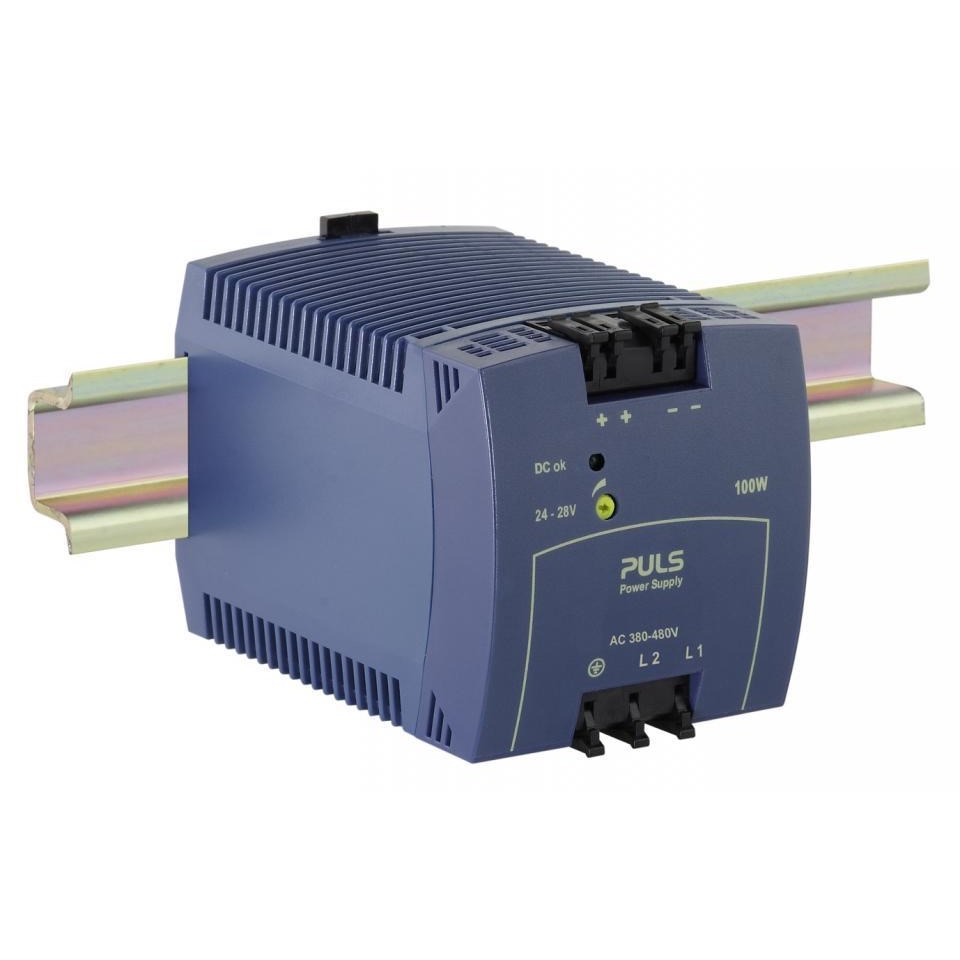

PULS DIN RAIL POWER SUPPLY 3 PHASE 24VDC 4.2A 100W ML100.200

Product Code: ML100.200

This product features a 380-480V 2-Phase input, with an efficiency of up to 89.5%. It does not require a Neutral wire and can provide full output power between -10 and +60°C. The quick-connect spring-clamp terminals make installation easy and convenient.

Technical Specifications

Conformal Coating No
Derating Temperature (°C) > +60
Brand PULS
Series ML series
Range MiniLine
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS01
Warranty Period (Months) 36
Mounting Type DIN Rail
AC Input Type Wide-range
Connection Type Spring clamps
Derating 2.5 W/°C
Efficiency 89.50%
External Input Fuse Recommendation B-10 A / C-6 A
Family MiniLine
Input Inrush Current (A) 30 / 36
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 380-480
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Output Current Range (A) 4.2 - 3.6
Output Power (W) 100
Output Voltage (V) 24-28
Power Factor 0.6
Power Loss (W) 11.7
Rated Current (A) 4.2
Special Application Marine
Dimensions (mm) 73W x 75H x 103D
Use In Crosslinking Yes
Weight (g) 360
Degree of Protection IP20
Standards and Approvals EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
