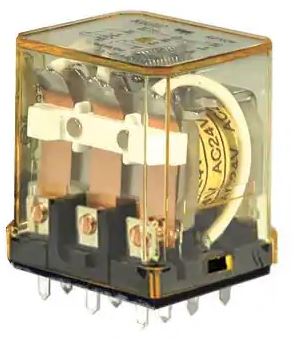

IDEC RELAY, 3PDT, 125V DC, 10A RH3B-DC125

Product Code: RH3B-DC125

The IDEC RH3B-DC125 is a compact, high-capacity 3PDT relay designed for efficient operation. With a 10A contact capacity and a rated voltage of 125V DC, it offers reliable switching for power circuits. Its miniature size ensures space-saving installation, making it ideal for applications where panel space is at a premium. This relay combines robust performance with a compact footprint, suitable for a wide range of industrial uses.

Technical Specifications

Operating Humidity 45 to 85%
Terminal Shape Blade Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Coil Voltage DC (V) 125
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts 3PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 3
Operating Time 25ms
Power Consumption (W) 1.5
Resistance to Vibrations 10 to 55Hz
Weight (g) 50
