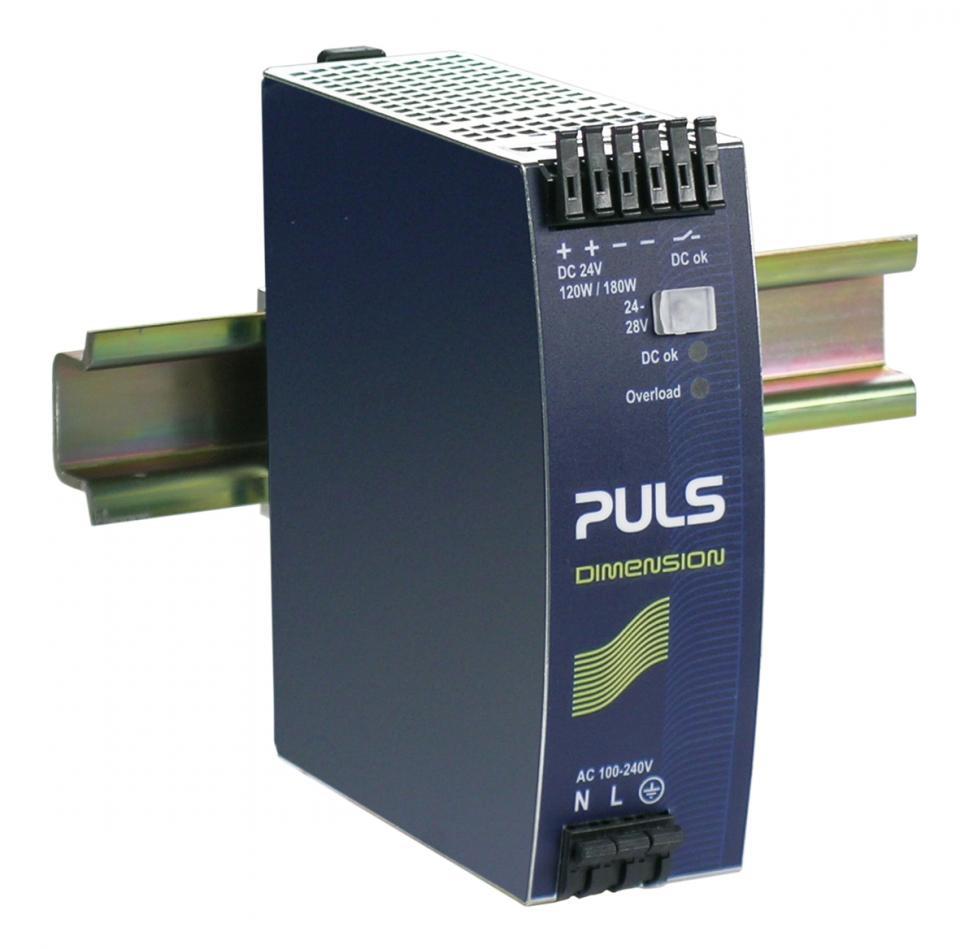

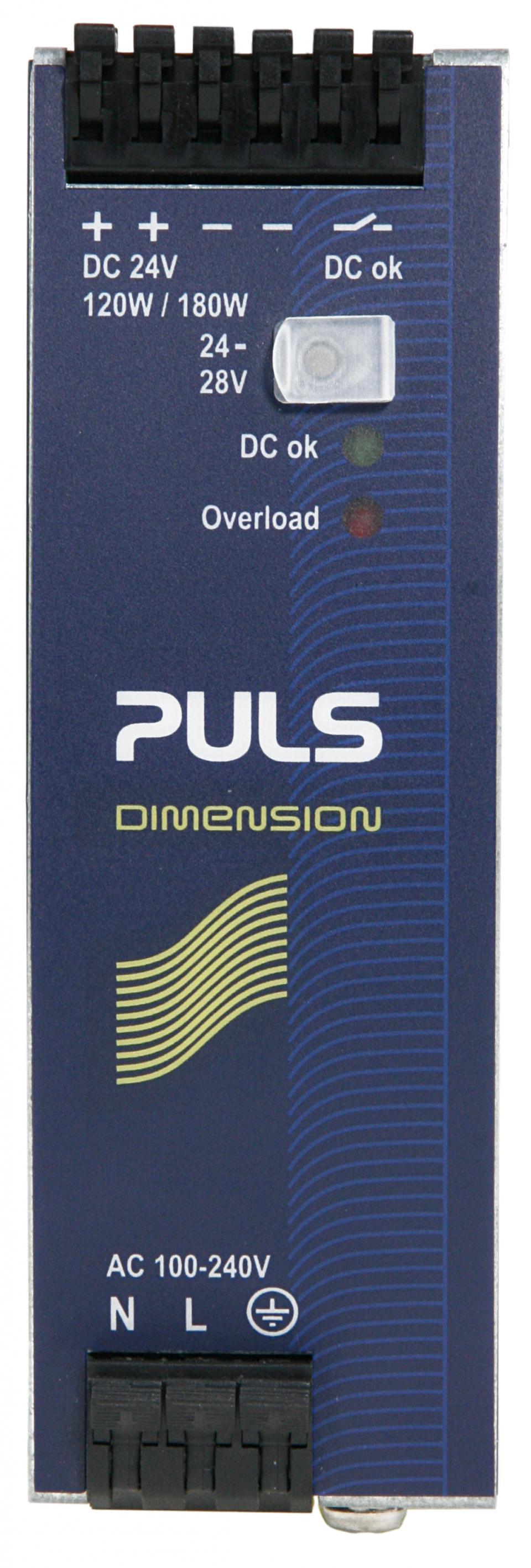

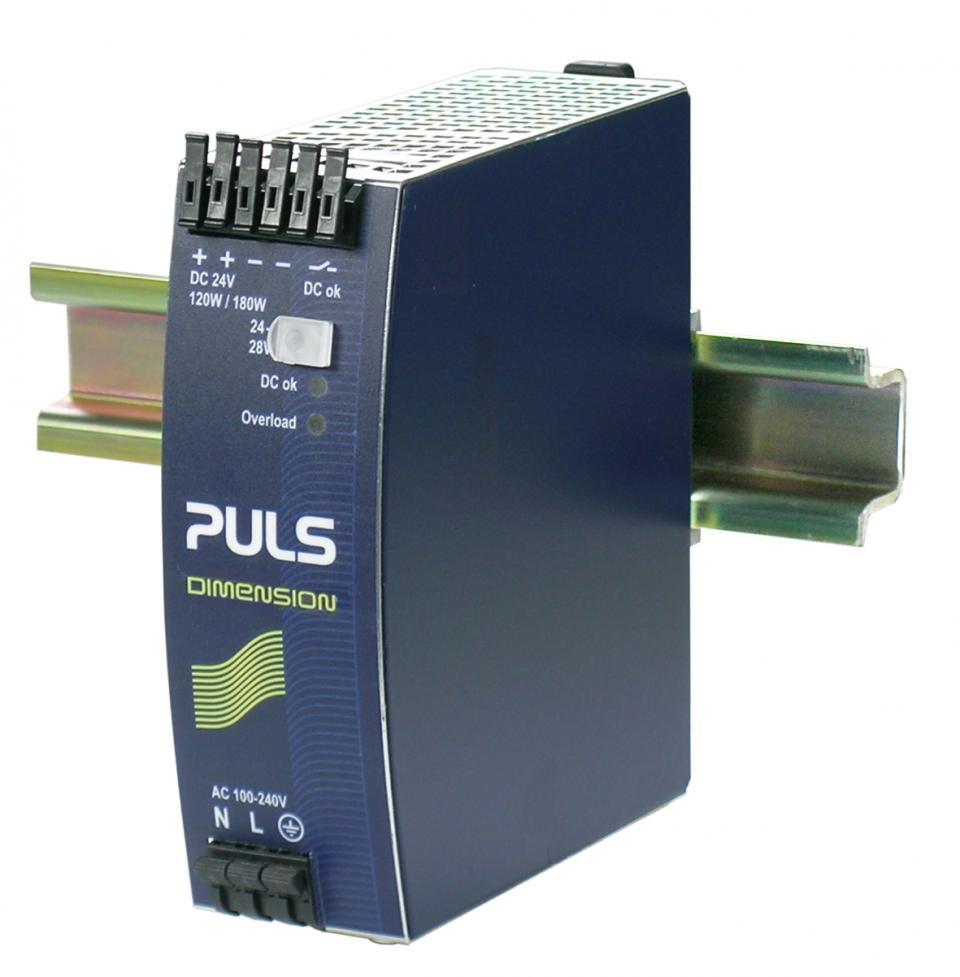

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 5A 120W QS5.241

Product Code: QS5.241

The product features a wide-range input of 100-240V and active power factor correction (PFC). It has an efficiency rating of up to 92.7% and is SEMI-F47-200 approved. The input inrush current is negligibly low. There are power reserves available up to 50% for up to 4 seconds. The product can provide full output power in temperatures ranging from -25°C to +60°C. It is equipped with spring-clamp terminals and has a DC-OK contact.

Technical Specifications

Brand PULS
AC Input Type Wide-range
Conformal Coating No
Connection Type Spring clamps
Country of Origin China / Czech Republic
Customs Tariff Number 85044083
DC-OK Signal Yes
Degree of Protection IP20
Derating 3 W/°C
Derating Temperature (°C) > +60
Dimensions (mm) 40W x 124H x 117D
E Classification E-CS01
Efficiency 92.70%
External Input Fuse Recommendation B-6 A / C-3 A
Family DIMENSION
Harmonic Correction Active
Input Inrush Current (A) 9 / 11
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 300
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Output Current Range (A) 5 - 4.5
Output Power (W) 120
Output Voltage (V) 24-28
Power Loss (W) 9.4
Power Reserve Type BonusPower
Power Reserves 50%
Range DIMENSION
Rated Current (A) 5
Series Q series
Special Application Hazardous location, Marine, Semiconductor
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Use In Crosslinking Yes
Warranty Period (Months) 36
Weight (g) 620
