Product Code: DGMYPVSCI150FM

Modular and pluggable multi-pole arrester For use in photovoltaic systems up to 150 V d.c. Three-step d.c. switching device Width: 3 modules Fault indication With remote signalling contact Type 2 SPD according to EN 50539-11 In accordance with IEC 60364-7-712

Specifications

Mounting Type	DIN Rail
Article No.	952518
Brand	DEHN
Product Type	Surge Protection Device
Circuit Type	DB
Maximum Discharge Current (8/20µs) - Imax (kA)	20 ((DC+/DC-) --> PE)
Maximum PV Voltage DC (V)	150
No. of Poles	2P+PE
Nominal Discharge Current (8/20µs) - In (kA)	10 ((DC+/DC-) --> PE)
Operating State/Fault Indication	Green/Red
Response Time (ns)	≤ 25
Signal C/O Contact	Yes
SPD Type	Type 2
Dimensions (mm)	0.07W x 0.1L x 0.06D
Total Discharge Current (8/20µs) - Itotal (kA)	40
No. of Modules	3
Weight (kg)	0.3
Voltage Protection Level - Up (kV)	≤ 0.8
Degree of Protection	IP20

Description

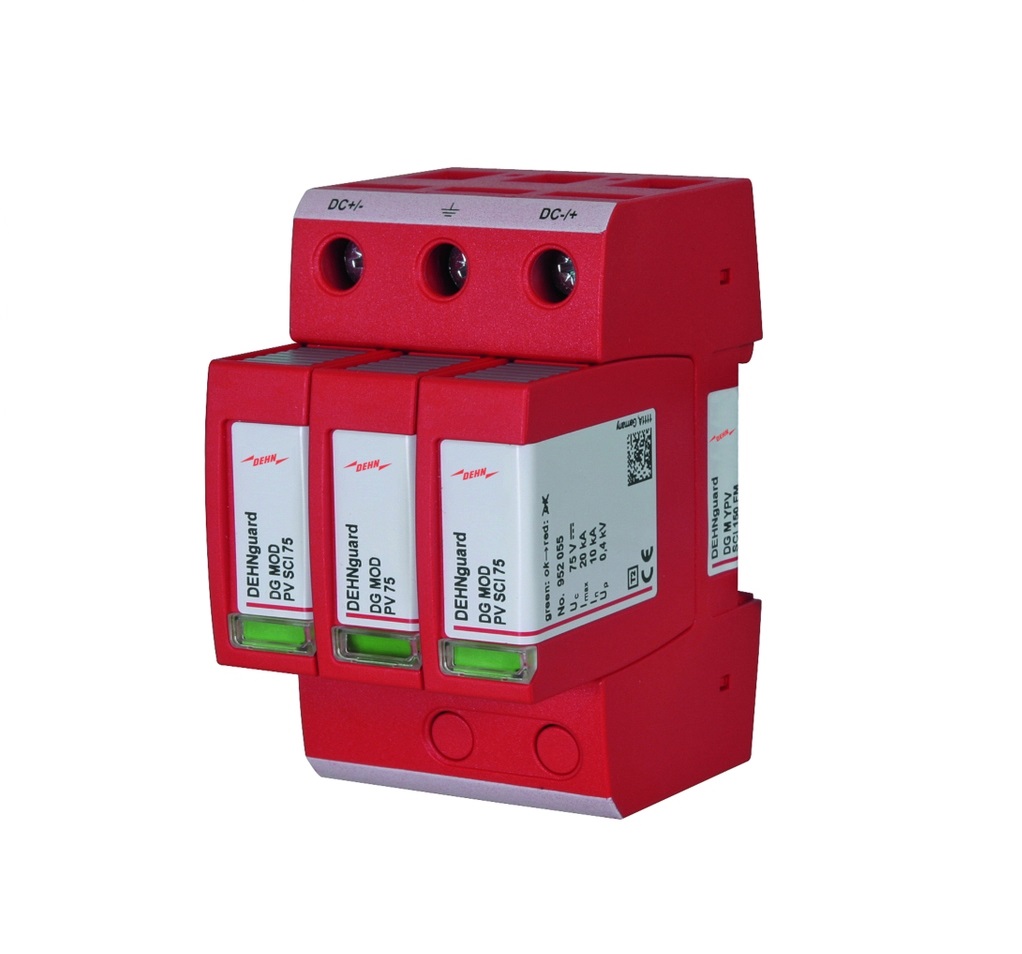

Multipole DEHNguard M YPV SCI type 2 surge arrester according to EN 50539-11 with three-step switching device consisting of a base part and plug-in protection modules. Combined disconnection and short-circuiting device with safe electrical isolation in the protection module (patented SCI principle). For protecting low-voltage consumer´s installations against surges. For use in accordance with IEC 60364-7-712:2002-05 (installation of photovoltaic power supply systems).
