Product Code: DSE203NMD32A30

Comprehensive protection: short-circuits, overloads, earth faults, and indirect contacts eRCBO technology, combines RCD and MCB functions Three-module design, easy installation 30mA versions, extra protection against direct contacts Unswitched neutral, continuous appliance operation with essential protection

Specifications

No. of Modules - Width 17.5 mm	3
Ambient Temperature Range (°C)	-5 to 55
Brand	ABB
Product Type	RCBO
Mechanical Endurance (Cycles)	20000
No. of Poles	3 + N
Overvoltage Category	III
Power Loss (W)	15.9
Rated Current (A)	32
Rated Frequency (Hz)	50 - 60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage (V)	415
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	10
Cross Section (mm²)	1 - Solid Core 1 - 25mm² 4 - Multi Wired 1 - 16mm²
Dimensions (mm)	53.4W x 117.5H x 71.6D
Trip Class	D
Type of Residual Current	Type A
Weight (kg)	0.549
Degree of Protection	IP20
Pollution Degree	2
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009-1

Description

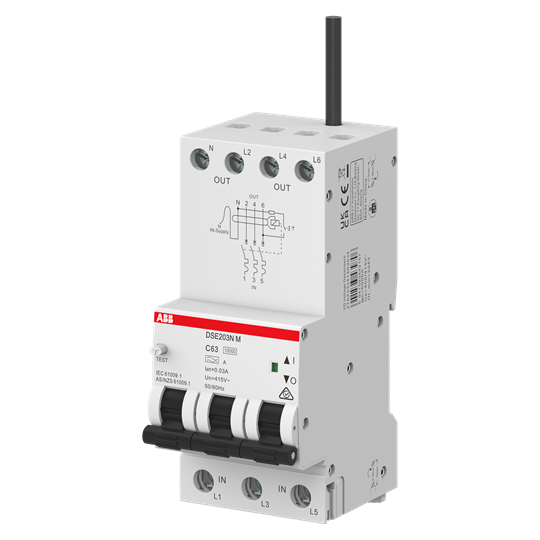

DSE203N M is a 3P+N electronic residual current circuit breaker with overcurrent protection (eRCBO) in three modules for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30mA versions). The neutral is unswitched.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB RCBO 3P+N 10kA 32A TYPE A 30mA D CURVE 3 MODULE CHASSIS MOUNT DSE203NMD32A30

Product Code: DSE203NMD32A30
