Product Code: DS203NCC20APR30

- Protection against short circuit, thermal overload and earth leakage - Contact Position Indication (CPI) - Earth fault indicator to identify easier earth faults - Test pushbutton to verify the correct functioning of the device - Laser printed data for quick identification - Finger safety with IP20 terminals - Pole configuration 3P+N

Specifications

Housing Material	Insulation Group II, RAL 7035
Mounting Type	DIN Rail
Brand	ABB
Product Type	RCBO
Series	DS203NC
AC Voltage (V)	400/415
Application	Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA)	10
Current Rating (A)	20
Curve Type	C Curve
Family	DS203NC
Icn-Rated Short Circuit Capacity (kA)	6
Impulse Withstand Voltage (kV/1.2µS)	4
No. of Poles	3P+N
Power Loss (W)	11.8
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	20
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	500
Rated Operational Voltage AC (V)	400/415
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	6
Rated Voltage AC (V)	230/400
Residual Current Type	AP-R
Trip Curve	C Curve
Type of Residual Current	AP-R
Degree of Protection	IP20
Pollution Degree	2
Poles	3P+N
Breaking Capacity (kA)	10 @230 V AC
Inc-Rated Conditional Short Circuit Capacity (kA)	10

Description

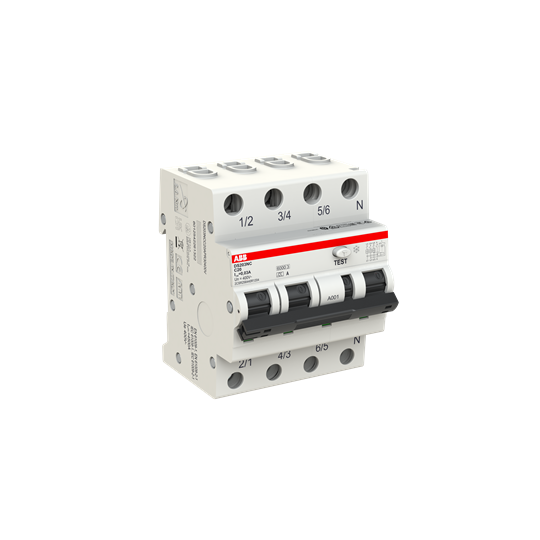

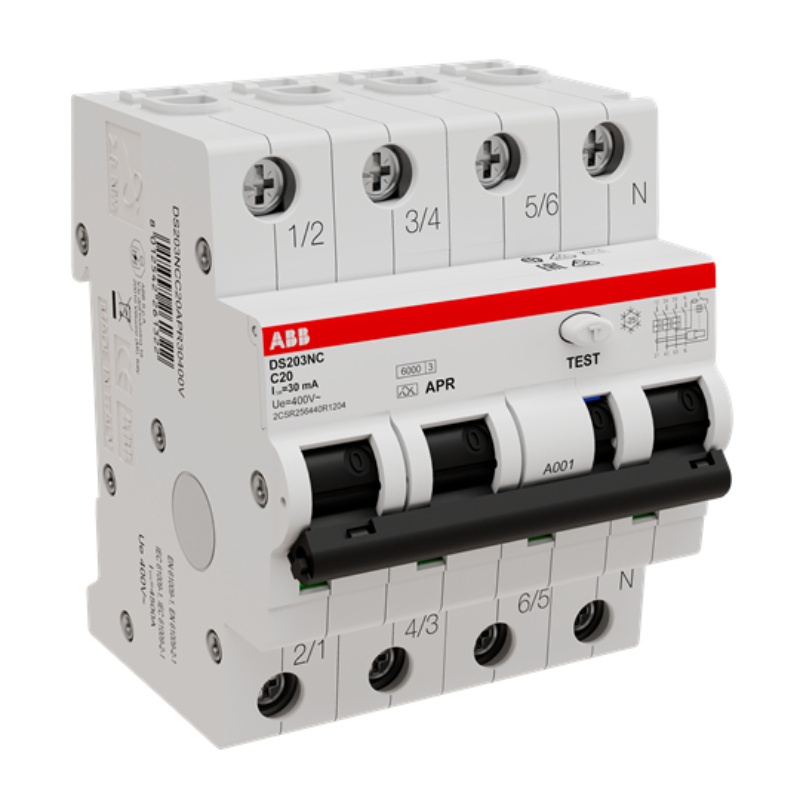

The ABB RCBO is a combined MCB/RCD with a 6kA rating at 230/400VAC. It has 3P+N configuration and a current rating of 20A. The RCBO is of C curve Type AP-R and offers high immunity protection against short circuit, thermal overload, and earth leakage. It is designed for commercial and industrial applications.
