Product Code: DS203NCC32APR30

- Protection against short circuit, thermal overload and earth leakage - Contact Position Indication (CPI) - Earth fault indicator to identify easier earth faults - Test pushbutton to verify the correct functioning of the device - Laser printed data for quick identification - Finger safety with IP20 terminals - Pole configuration 3P+N

Specifications

Housing Material	Insulation Group II, RAL 7035
Mounting Type	DIN Rail
Brand	ABB
Product Type	RCBO
Series	DS203NC
AC Voltage (V)	400/415
Application	Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA)	10
Current Rating (A)	32
Curve Type	C Curve
Family	DS203NC
Icn-Rated Short Circuit Capacity (kA)	6
Impulse Withstand Voltage (kV/1.2µS)	4
No. of Poles	3P+N
Power Loss (W)	15.1
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	32
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage AC (V)	500
Rated Operational Voltage AC (V)	400/415
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	6
Rated Voltage AC (V)	230/400
Residual Current Type	AP-R
Trip Curve	C Curve
Type of Residual Current	AP-R
Degree of Protection	IP20
Pollution Degree	2
Poles	3P+N
Breaking Capacity (kA)	10 @230 V AC
Inc-Rated Conditional Short Circuit Capacity (kA)	10

Description

The ABB RCBO is a combined MCB/RCD that offers high immunity protection against short circuit, thermal overload, and earth leakage. It has a breaking capacity of 6kA at 230/400VAC and is designed for commercial and industrial use. With a 3P+N configuration and a rating of 32A, it features a C curve Type AP-R and operates with a sensitivity of 30mA.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

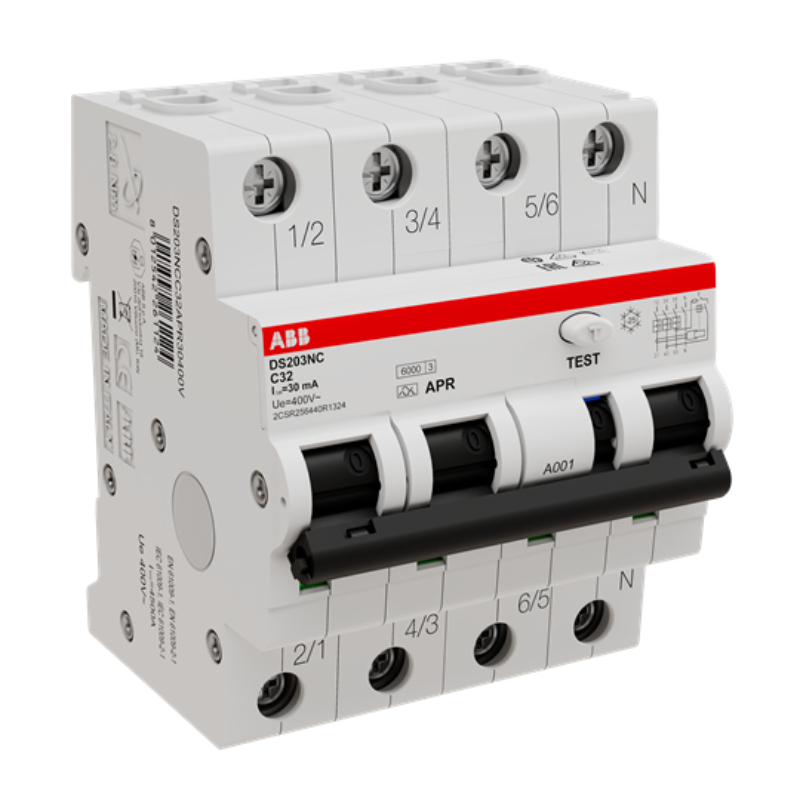

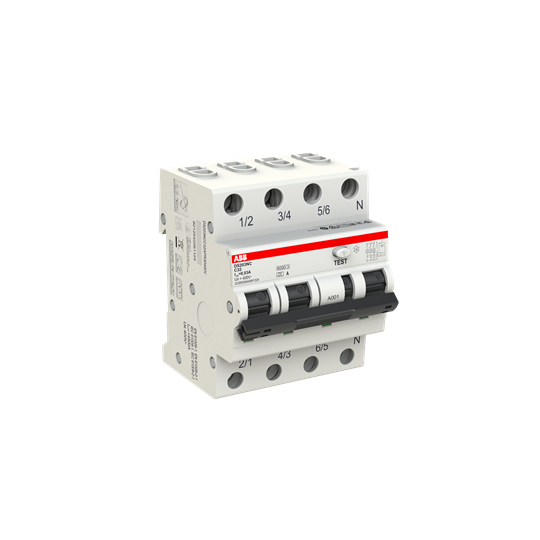

ABB DS203NCC32APR30 RCBO 6kA 3P+N 32A C CURVE TYPE AP-R 30mA
