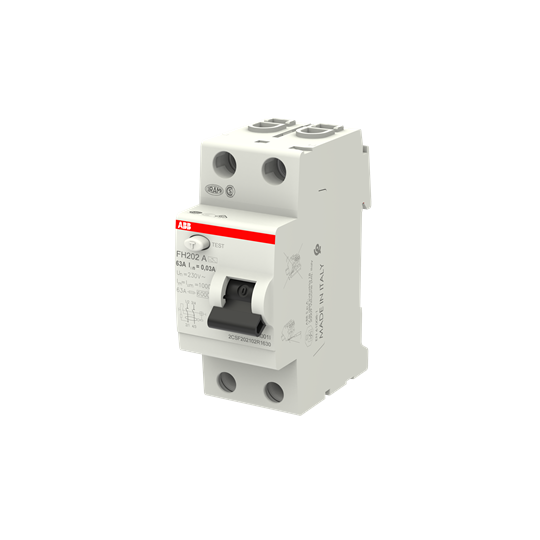

ABB RCCB 2 POLE 63A TYPE A 6kA FH202A63

Product Code: FH202A63

  • Protection to people and installations against fault current to earth Protection against earth leakage faults Type A residual current Instantaneous operating characteristic
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Modules - Width 17.5 mm 2
Mounting Type DIN Rail
Operational Temperature Range (°C) -5 to 40
Storage Temperature Range (°C) -40 to 70
Brand ABB
Product Type RCCB
Leakage Current Type A
No. of Poles 2
Power Loss (W) 3.2W per Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 63
Rated Frequency (Hz) 50
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Rated Voltage (V) 230
Dimensions (mm) 35W x 85H x 69D
Type of Residual Current A
Weight (kg) 0.2
Degree of Protection IP2X
Standards and Approvals IEC/EN 61008

Description

The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
