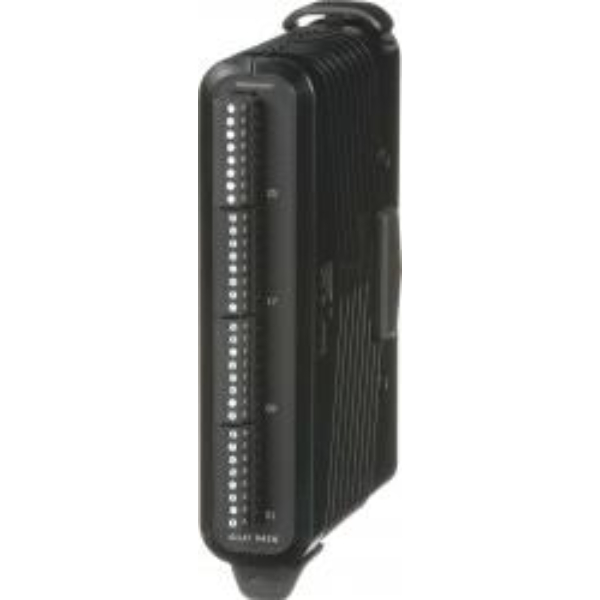

RED LION FLEXEDGE I/O MIX MODULE WITH 4UI DAM00I0IN4DA0000

Product Code: DAM00I0IN4DA0000

The FlexEdge I/O Mix module is a versatile device designed for engineers. It features 4 Universal Inputs, 3 DI/DO, and 2 AO. The Universal Inputs can accept various signals including TC, RTD, 0-10 V, and 0/4-20 mA. Additionally, the module offers digital Inputs and outputs that are software selectable. The Analog Outputs are capable of multiple ranges, providing flexibility for different applications.

Technical Specifications

Brand RED LION
Series DA
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to 75
I/O Points 4 Universal Inputs, 3 DI/DO, 2 AO
Inputs UI - TC, RTD, 0-10 V and 0/4-20 mA Signals
Degree of Protection IP30
Standards and Approvals IEC/EN 61010-1, CE, RoHS, ATEX, IECEx, UL Hazardous
