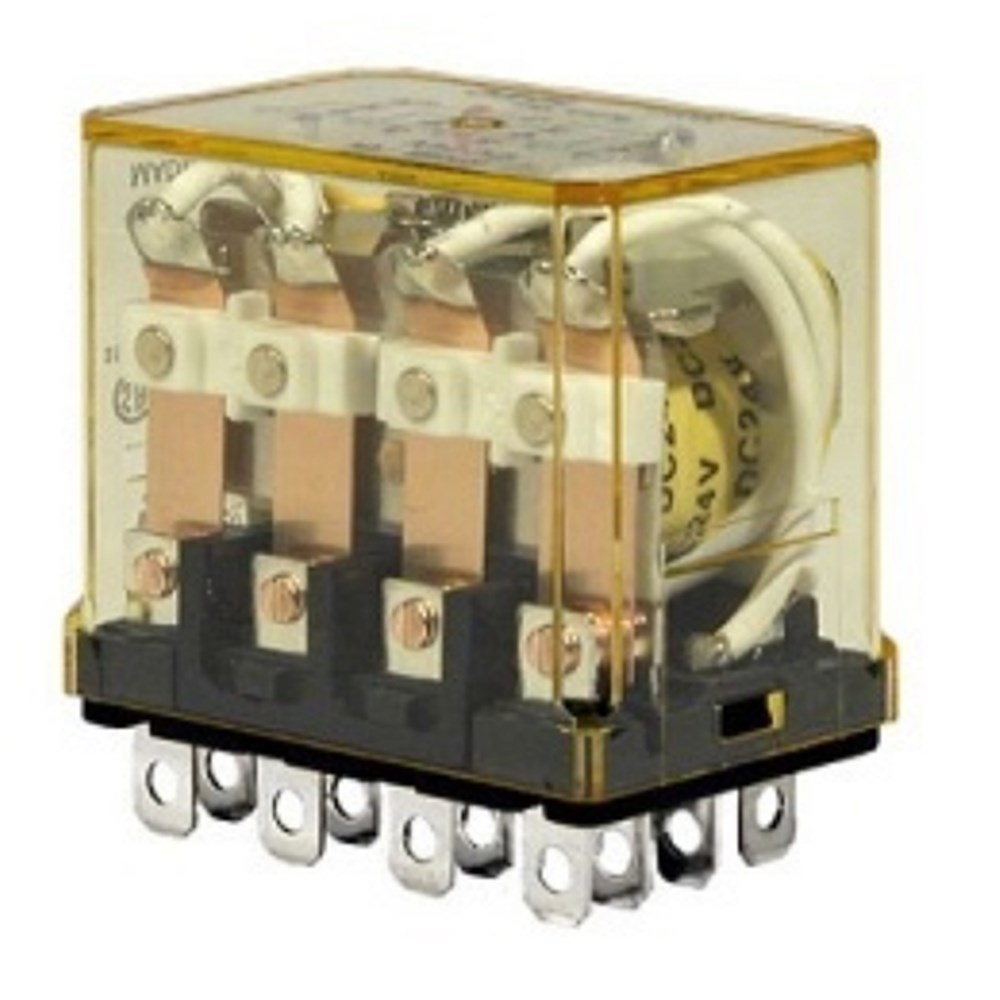

IDEC RELAY, 4PDT, 12V DC, 10A WITH INDICATOR RH4B-ULDC12

Product Code: RH4B-ULDC12

The IDEC RH4B-ULDC12 is a 4PDT relay designed for efficient operation in compact spaces. It operates on a 12V DC coil voltage and handles up to 10A contact capacity, suitable for various applications. The relay's miniature size allows for space-saving installation while maintaining a large capacity for power switching. An integrated indicator provides visual confirmation of the relay's status, enhancing usability and monitoring.

Technical Specifications

Operating Humidity 45 to 85%
Terminal Shape Blade Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Coil Voltage DC (V) 12
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts 4PDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 4
Operating Time 25ms
Power Consumption (W) 1.5
Resistance to Vibrations 10 to 55Hz
Weight (g) 74
