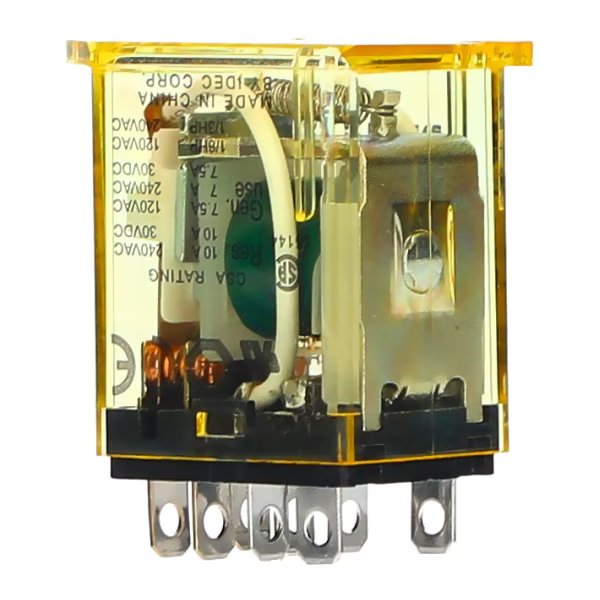

IDEC RELAY, DPDT, 240V AC, 10A TOP BRACKET MOUNTING RH2B-UTAC220-240

Product Code: RH2B-UTAC220-240

The IDEC RH2B-UTAC220-240 is a compact, high-capacity DPDT relay designed for top bracket mounting. It operates at 240V AC with a contact capacity of 10A, suitable for various applications where space is at a premium. Its miniature size combined with the power type relay functionality ensures efficient operation within tight spaces without compromising on performance.

Technical Specifications

Operating Humidity 45 to 85%
Terminal Shape Blade Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Coil Voltage AC (V) 220 - 240
Contact Material Silver Cadmium Oxide
Contact Resistance (mO) 50
Contacts DPDT
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 50,000,000
No. of Poles 2
Operating Time 20ms
Power Consumption (W) 0.9
Resistance to Vibrations 10 to 55Hz
Weight (g) 37
