Product Code: RY2KS-UDC24

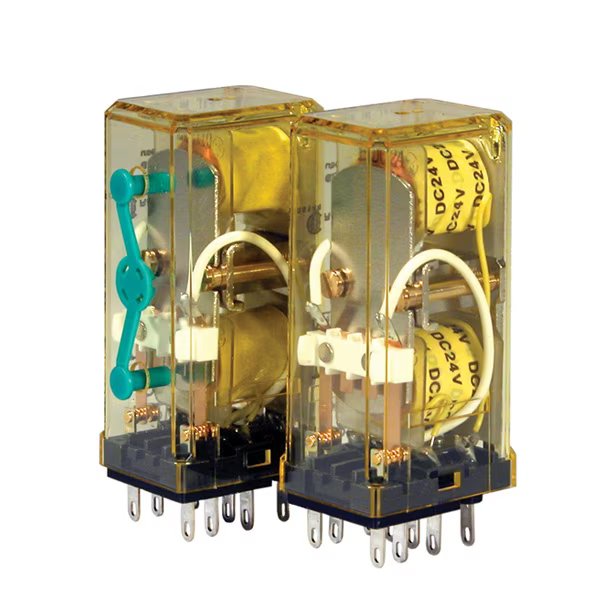

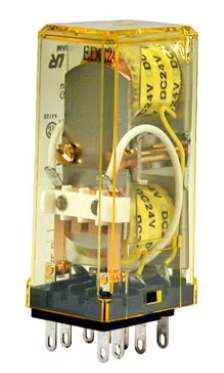

The IDEC RY2KS-UDC24 is a latching relay designed for dependable and energy-efficient operation. It features a dual-coil permanent magnet, ensuring reliable performance. The DPDT configuration allows for versatile switching applications, while the 3A contact rating ensures compatibility with various loads. Its self-maintained latch mechanism enhances energy efficiency by retaining the last state without power. Additionally, blade terminals facilitate straightforward installation.

Resistance to Shock (m/s²)	200
Model	Basic
Brand	IDEC
Ambient Temperature Range (°C)	-5 to 40
Operational Temperature Range (°C)	-5 to 40
Coil Voltage DC (V)	24
Contact Configuration	DPDT
Contact Material	Gold-plated Silver
Contact Resistance (mO)	50
Insulation Resistance (MO)	100
Minimum Electrical Life	200,000 Operations
Minimum Mechanical Life	5,000,000 Operations
Power Consumption (VA)	AC: 1.6VA (50Hz), 1.5VA (60Hz)
Power Consumption (W)	DC: 1.2W
Rated Current (A)	3
Resistance to Vibrations	5 to 55Hz
Terminal Type	Blade
Dimensions (mm)	21W x 55.3H x 27.5D
Weight (g)	67

Relays

IDEC RELAY LATCHING, DPDT, 24V DC 3A, SELF MAINTAINED LATCH RY2KS-UDC24
